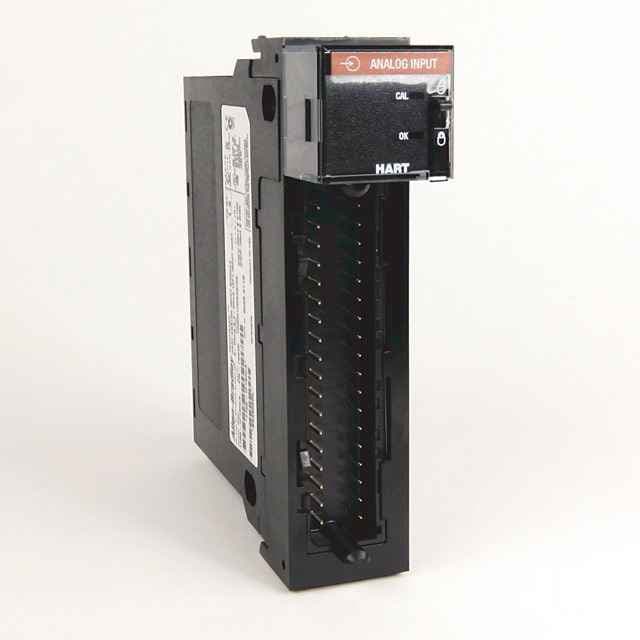

Short Description: Allen Bradley 1756-IF16H ControlLogix Analog Input Module with HART Protocol, 16 differential current inputs (0-20mA, 4-20mA), dedicated HART modem per channel.
Product Model1756-IF16H
Product ID107902
Stock on Request
Last updated: 8/29/2026
Key Features
1
Feature1. High Precision Inputs The 1756-IF16H features 16 differential current inputs with a resolution of 16 to 21 bits, ensuring high precision in analog signal measurement.
2
Feature2. HART Protocol Support Equipped with a dedicated HART modem per channel, this module supports the Highway Addressable Remote Transducer (HART) protocol, facilitating advanced communication and control in industrial settings.
3
Feature3. Robust Power Handling The module can handle backplane voltages of 5.1V DC at 225 mA and 24V DC at 200 mA, with a total power dissipation of 5.30 W and inrush currents of 400 mA at 5.1V DC and 450 mA at 24V DC.
4
Feature4. Enhanced Noise Rejection The module offers normal mode noise rejection of 74 dB at 50/60 Hz (15 Hz filter) and 90 dB at 60 Hz (20 Hz filter), ensuring reliable data acquisition even in noisy environments.
5
Feature5. Durable Design Designed for industrial use, the 1756-IF16H operates within a temperature range of 0°C to +60°C (+32°F to +140°F) and has an isolation voltage of 250V (continuous), providing robust performance in various operating conditions.
