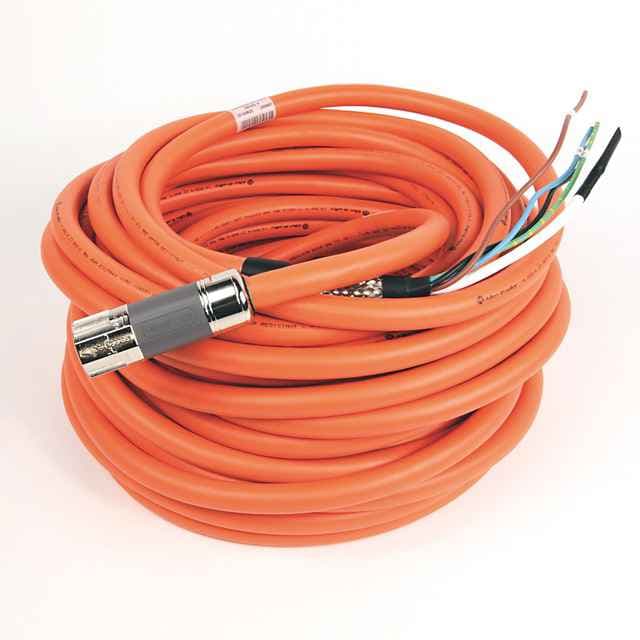

High-voltage hybrid motor cable for Kinetix 5500 drives, 14 AWG copper conductor, 1000V nominal voltage, TPE jacket.
Product Model2090-CSWM1DF-14AA32
Product ID107719
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. High-Voltage CapabilityThe 2090-CSWM1DF-14AA32 is designed to handle 1000V, making it suitable for demanding industrial applications.
2
2. Low Capacitance DesignThis cable is engineered to maximize system power density, ensuring efficient energy transfer and minimizing power losses.
3
3. Speedtec Connection SystemEquipped with the Speedtec DIN connector, this cable provides a reliable and efficient connection system for motor control applications.
4
4. Noise RejectionThe cable features an encoder communication data pair with noise rejection, ensuring clear and reliable data transmission in noisy environments.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Accessory Component
Single DSL
Cable Style
Standard, Non-flex
Drive-end Connector Type
Flying Lead at 5500 Drive End
Motor-end Connector Type
Single SpeedTec DIN Connector
Outer diameter approx.
17
Core colour
Green/Yellow
5. Mechanical and Chemical PropertiesThe TPE jacket provides excellent mechanical and chemical properties, ensuring the cable's durability and resistance to various environmental conditions.
Cable length
32 m
Drive-end connector type
Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)
Number of cores
8
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Tinned
Color cable code
RAL2003
Core color
White/blue
Motor-end connector type
Single speedTec DIN connector
AWG size
14
Nominal voltage U
1000
Cable type
Single motor power only
Cable description
Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors
Nominal cross section conductor
2.08
Nominal cross section conductor (AWG)
4.1
Cable style
Standard, non-flexible
Weight, approx
Standard (non-flex), power wire: 0.185 kg/m
Twisted cores
No
Accessory component
Cable
Static bend radius
Standard (non-flex) and continuous flex: 7 times the cable diam
Features
Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol
Max. conductor temperature
105
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
20.295
Lead Time
39
Dimension Width
25.4
Dimension Length
30.505
Stock Status
NON_STOCKED
Weight
11.258
Weight Unit
KG
Dimension Unit
CM
