1756-PA30XT

Name: 1756-PA30XT
Brand: ROCKWELL
SKU: 1756-PA30XT

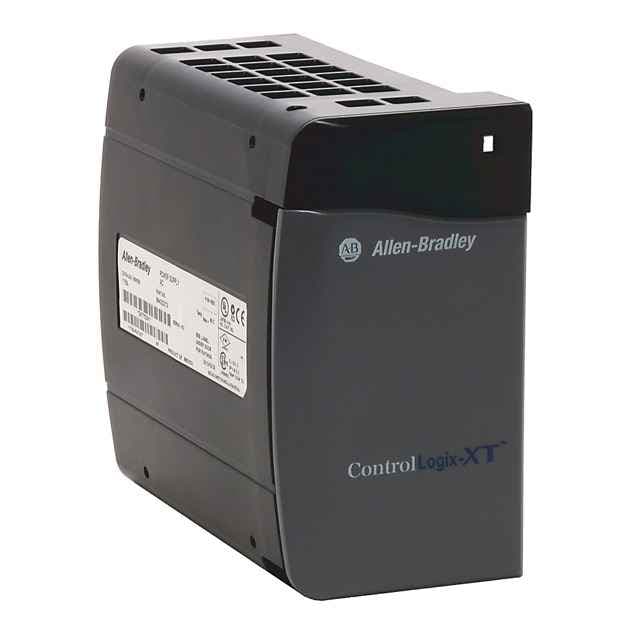

The Allen-Bradley 1756-PA30XT is a slim power supply designed for the 1756 ControlLogix-XT system, offering reliable DC power in a compact form factor. Ideal for industrial automation applications, this power supply is efficient, easy to install, and ensures optimal performance in harsh environments.

Product Model1756-PA30XT

Product ID107609

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Compact DesignThe 1756-PA30XT features a slim design, making it ideal for space-constrained applications. Its compact size allows for easy integration into various industrial automation systems without compromising performance.
2
2. Reliable Power SupplyThis power supply is engineered to provide reliable DC power to the 1756 ControlLogix-XT system. It ensures consistent performance, even in harsh industrial environments, minimizing downtime and maximizing productivity.
3
3. Efficient OperationThe 1756-PA30XT is designed for efficiency, reducing energy consumption and heat generation. This results in lower operational costs and extended equipment lifespan.
4
4. Easy InstallationThe power supply is designed for straightforward installation, reducing setup time and complexity. Its compatibility with the 1756 chassis makes it a seamless addition to existing automation systems.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Connection Cables

None required

Redundant Configuration

Type of voltage (input voltage)

Power output

30 W

Output voltage at DC

5.1 V

Input voltage, nom

120/240V AC

5. High PerformanceThe 1756-PA30XT delivers high-performance power supply capabilities, supporting multiple voltage outputs (1.2V, 3.3V, 5V, and 24V DC) to meet the diverse needs of industrial automation applications. Its robust design ensures reliable operation under various load conditions.

Input power, max

60VA/50 W

Current capacity

6A @ 5.1V DC

Power output, max

30 W @ -25...+70 Â°C (-13...+158 Â°F)

Wire category

1 - on power ports

Wire size

2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 Â°C (194 Â°F), or greater, 1.2 mm (3/64 in.) insulation max

Suitable for safety functions

Input voltage at AC 50 Hz

85 V

Input voltage at AC 60 Hz

85 V

Redundancy capable

Input frequency

47 Hz

Width

78 mm

Height

140 mm

Depth

145 mm

Enclosure type rating

None (open-style)

Weight

0.771

ISAGX

Rockwell tire and rubber rated

Conductor screw torque

0.565 nm

Vibration

2 G @ 10...500 Hz

Relative humidity

5...95% noncondensing

Shock

Operating: 30 G

Operating temperature

-25 Â°C < Ta < +70 Â°C (-13 Â°F < Ta < +158 Â°F)

Voltage variation

IEC 61000-4-11: 30% dips for 1 period at 0Â° and 180Â° on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, Â±10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports

Repairable

REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

14.0

Lead Time

Dimension Width

7.8

Dimension Length

14.5

Stock Status

NON_STOCKED

Weight Unit

Dimension Unit
