2090-CSBM1DF-14AA28

Name: 2090-CSBM1DF-14AA28
Brand: ROCKWELL
SKU: 2090-CSBM1DF-14AA28

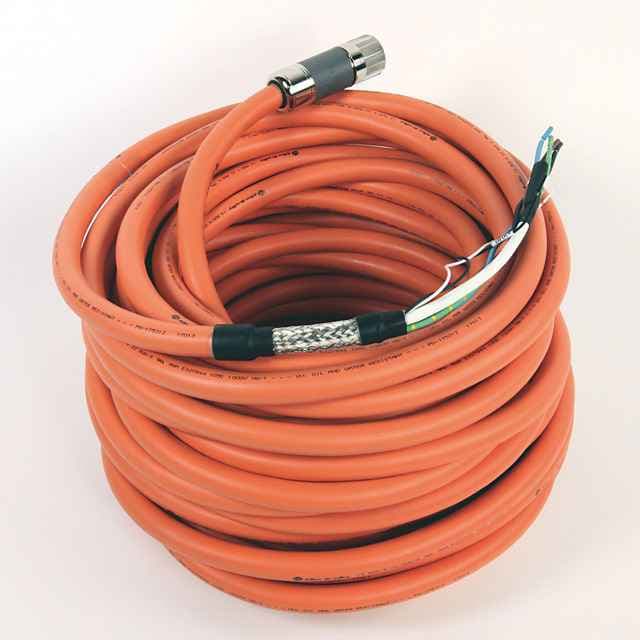

The Allen Bradley 2090-CSBM1DF-14AA28 is a reliable single motor power cable with brake wires, optimized for Kinetix 5700 drives. It boasts 14 AWG, 28 meters length, and a SpeedTec DIN connector, ensuring low capacitance and excellent EMC/EMI performance.

Product Model2090-CSBM1DF-14AA28

Product ID107427

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Optimized for Kinetix 5700 DrivesThe 2090-CSBM1DF-14AA28 is specifically designed to work seamlessly with Kinetix 5700 drives, ensuring compatibility and performance.
2
2. Low Capacitance DesignThis cable features a low capacitance design, which maximizes system power density and enhances overall efficiency.
3
3. Excellent EMC/EMI PerformanceThe cable is equipped with a tinned copper braid and aluminum/polyester tape, providing 100% coverage for excellent EMC/EMI performance.
4
4. SpeedTec DIN ConnectorThe SpeedTec DIN connector ensures secure and reliable connections, making it ideal for demanding applications.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Outer diameter approx.

Core colour

White

Cable length

28 m

5. Halogen-Free PUR Option AvailableFor applications requiring halogen-free materials, the 2090-CSBM1DF-14AA28 is available with a PUR jacket, ensuring safety and compliance.

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

2.08

Nominal cross section conductor (AWG)

4.1

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.289 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

19.99

Lead Time

Dimension Width

32.995

Dimension Length

34.011

Stock Status

NON_STOCKED

Weight

9.467

Weight Unit

Dimension Unit
