2090-CSBM1DF-14AA32

Name: 2090-CSBM1DF-14AA32
Brand: ROCKWELL
SKU: 2090-CSBM1DF-14AA32

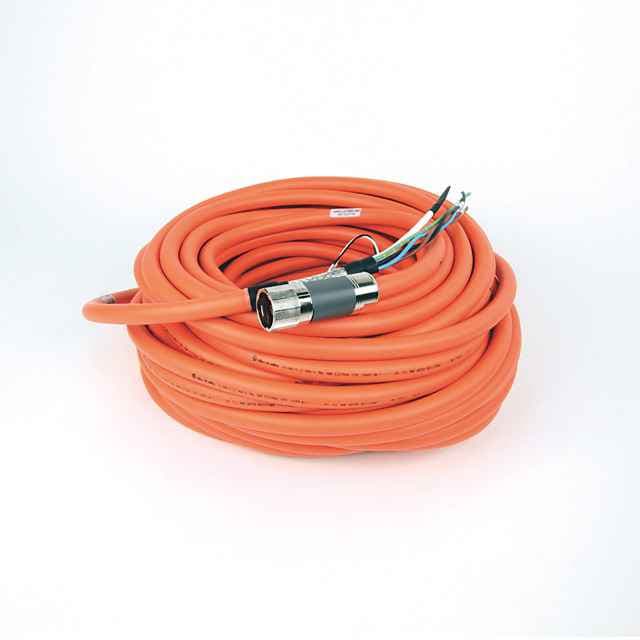

The Allen Bradley 2090-CSBM1DF-14AA32 is a standard, non-flexible single motor power cable with brake wires, designed for Kinetix 5500 systems. It features 14 AWG wire and a flying lead at the drive end, ensuring reliable digital communication and noise rejection.

Product Model2090-CSBM1DF-14AA32

Product ID107400

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable Digital CommunicationThe 2090-CSBM1DF-14AA32 cable ensures robust digital communication, making it perfect for applications requiring precise data transfer.
2
2. Noise RejectionEquipped with a TPE jacket and overall tinned copper braid, this cable features noise rejection properties, ensuring clear and uninterrupted signals.
3
3. Low Capacitance DesignThe low capacitance design maximizes system power density, making it an efficient choice for high-performance applications.
4
4. Mechanical and Chemical PropertiesThe TPE jacket provides excellent mechanical and chemical properties, ensuring the cable's durability and longevity.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

Core colour

White

Cable length

32 m

5. High-Temperature CapabilityThe cable can withstand a maximum conductor temperature of 105°C, making it suitable for demanding industrial environments.

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

2.08

Nominal cross section conductor (AWG)

4.1

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.289 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

24.79

Lead Time

Dimension Width

31.902

Dimension Length

33.096

Stock Status

NON_STOCKED

Weight

12.17

Weight Unit
