2090-CSBM1DF-14AA30

Name: 2090-CSBM1DF-14AA30
Brand: ROCKWELL
SKU: 2090-CSBM1DF-14AA30

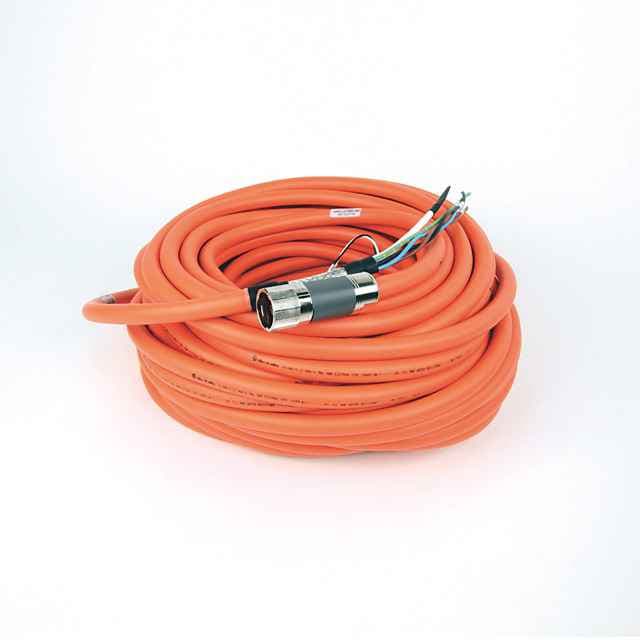

The Allen Bradley 2090-CSBM1DF-14AA30 is a standard, non-flex single motor power cable with brake wires, optimized for Kinetix 5500 drives. It features 14 AWG wire gauge and is designed for reliable performance in industrial automation applications.

Product Model2090-CSBM1DF-14AA30

Product ID107382

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliable PerformanceThe 2090-CSBM1DF-14AA30 is engineered to provide consistent and reliable performance in demanding industrial environments, ensuring your automation systems run smoothly.
2
2. CompatibilityDesigned specifically for Kinetix 5500 drives, this cable ensures seamless integration with your existing automation setup, reducing installation complexities.
3
3. DurabilityConstructed with high-quality materials, this cable is built to withstand the rigors of continuous use, extending the lifespan of your motor systems.
4
4. Efficient DesignWith its optimized 14 AWG wire gauge, the 2090-CSBM1DF-14AA30 minimizes energy loss and maximizes efficiency, reducing operational costs.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

Core colour

White

5. Easy InstallationFeaturing flying leads and a straightforward connector design, this cable simplifies the installation process, saving you time and effort in setting up your motor systems.

Cable length

30 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

Number of cores

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

2.08

Nominal cross section conductor (AWG)

4.1

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.289 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

true

Quick Turnaround

false

Dimension Height

20.193

Lead Time

Dimension Width

33.299

Dimension Length

35.509

Stock Status

STOCKED

Weight

10.147

Weight Unit
