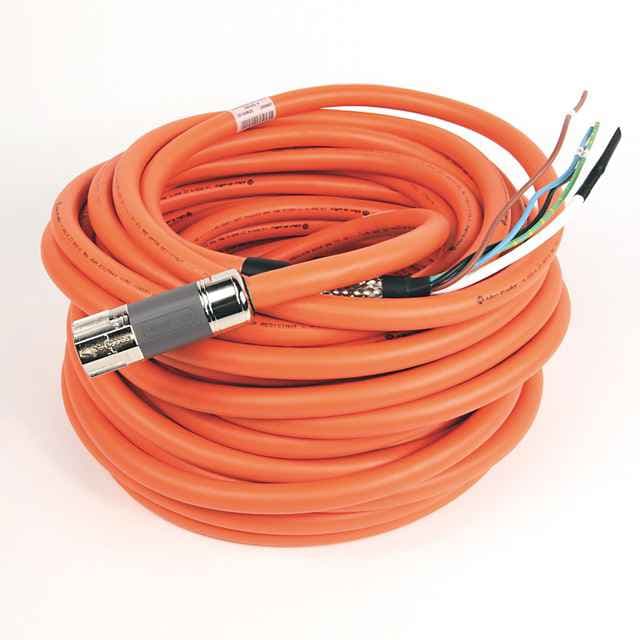

High-quality single motor power and feedback cable for Kinetix 5500 drives, 14 AWG wire, 40-meter length, standard non-flex construction.
Product Model2090-CSWM1DF-14AA40
Product ID106974
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Compatibility with Kinetix 5500 DrivesThe 2090-CSWM1DF-14AA40 is specifically designed to work seamlessly with Allen-Bradley's Kinetix 5500 drives, ensuring smooth and efficient operation in industrial settings.
2
2. Reliable PerformanceConstructed with high-quality materials, this cable provides reliable power and feedback transmission, minimizing downtime and ensuring consistent performance.
3
3. Standard Non-Flex ConstructionThe standard non-flex design of the cable ensures durability and resistance to flexing, making it ideal for applications where minimal movement is required.
4
4. 40-Meter Cable LengthThe 40-meter cable length offers flexibility in installation, allowing for longer runs without the need for additional connections, which can reduce complexity and cost.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Drive-end Connector Type
Flying Lead at 5500 Drive End
Motor-end Connector Type
Single SpeedTec DIN Connector
Outer diameter approx.
17
Core colour
Green/Yellow
Cable length
40 m
Drive-end connector type
Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)
5
5. High-Quality MaterialsFeaturing 14 AWG wire, this cable is built to withstand the demands of industrial environments. The use of high-quality materials ensures long-lasting performance and reliability.
Number of cores
8
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Tinned
Color cable code
RAL2003
Core color
White/blue
Motor-end connector type
Single speedTec DIN connector
AWG size
14
Nominal voltage U
1000
Cable type
Single motor power only
Cable description
Power only: 1000V hybrid cable with four power and two ftdback (digital communication) conductors
Nominal cross section conductor
2.08
Nominal cross section conductor (AWG)
4.1
Cable style
Standard, non-flexible
Weight, approx
Standard (non-flex), power wire: 0.185 kg/m
Twisted cores
No
Accessory component
Cable
Static bend radius
Standard (non-flex) and continuous flex: 7 times the cable diam
Features
Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol
