2090-CSBM1DF-18AA05

Name: 2090-CSBM1DF-18AA05
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AA05

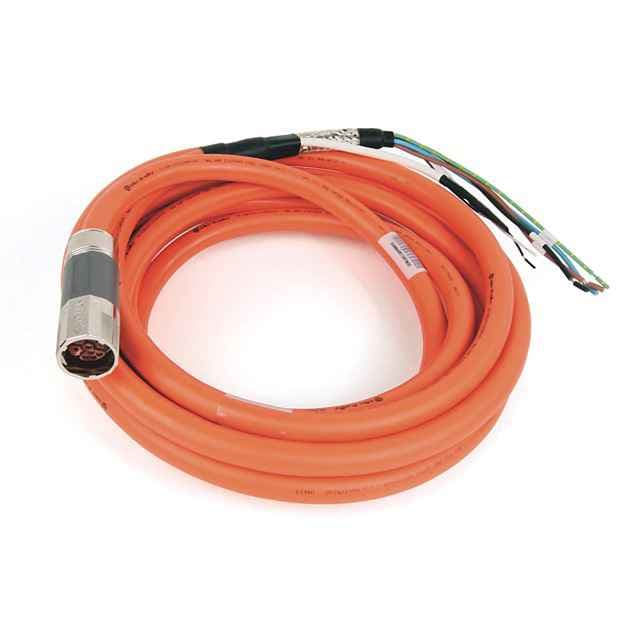

The Allen-Bradley 2090-CSBM1DF-18AA05 is a reliable single motor cable designed for Kinetix 5500 drives. It includes a 5-meter length, 18 AWG wire, and a flying lead at the drive end, making it suitable for applications needing power, feedback, and brake connections.

Product Model2090-CSBM1DF-18AA05

Product ID106887

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. High-Quality ConstructionThe Allen-Bradley 2090-CSBM1DF-18AA05 is built with high-quality materials, ensuring durability and reliability in demanding industrial environments.
2
2. Optimized for Kinetix 5500Specifically designed for Kinetix 5500 drives, this cable ensures seamless integration and optimal performance in your servo drive applications.
3
3. Power, Feedback, and Brake CapabilitiesEquipped with four power conductors, two feedback (digital communication) conductors, and two brake conductors, this cable meets the needs of complex motor control systems.
4
4. Low Capacitance DesignFeaturing a low capacitance design, this cable maximizes system power density, making it ideal for applications where efficiency is crucial.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

15 mm

Core colour

White

5. Standard, Non-Flexible CableThe standard, non-flexible cable design ensures consistent performance and reduces the risk of damage from bending or flexing, providing a reliable connection over time.

Cable length

5 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

Number of cores

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

true

Quick Turnaround

false

Dimension Height

7.899

Lead Time

Dimension Width

27.788

Dimension Length

30.302

Stock Status

STOCKED

Weight

1.599

Weight Unit
