High-performance 14 AWG cable for Kinetix 5500 drives. Reliable motor power and feedback with a 23-meter length. Ideal for industrial applications.

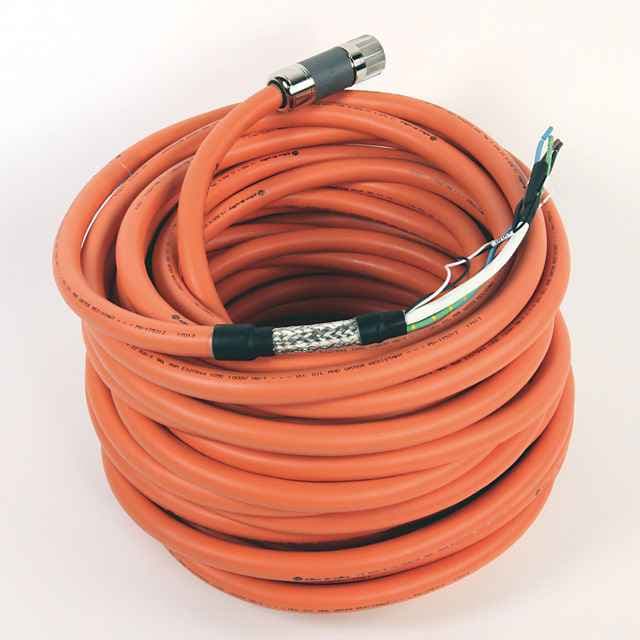

Product Model2090-CSBM1DF-14AA23
Product ID106872
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Reliable Performance"Ensure consistent performance with the 2090-CSBM1DF-14AA23 cable, designed for Kinetix 5500 drives. Its robust construction guarantees reliable motor power and feedback."
2
2. High-Quality Materials"Built with high-quality materials, this cable features a tinned copper braid with aluminum/polyester jacket, providing excellent mechanical and chemical properties."
3
3. Low Capacitance Design"Maximize system power density with the low capacitance design of the 2090-CSBM1DF-14AA23 cable. This feature ensures efficient energy transmission and reduced noise."
4
4. Speedtec Connection System"Experience seamless connectivity with the Speedtec connection system. This advanced technology ensures smooth data communication and noise rejection, enhancing overall system performance."
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Accessory Component
Single DSL
Cable Style
Standard, Non-flex
Drive-end Connector Type
Flying Lead at 5500 Drive End
Outer diameter approx.
17
Core colour
White
Cable length
23 m
5
5. Durable Construction"Withstand demanding industrial environments with the durable construction of the 2090-CSBM1DF-14AA23 cable. Its static bend radius is designed to handle continuous flex, ensuring long-lasting reliability."
Drive-end connector type
Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)
Number of cores
8
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Tinned
Color cable code
RAL2003
Core color
White/blue
Motor-end connector type
Single speedTec DIN connector
AWG size
14
Nominal voltage U
1000
Cable type
Single motor power with brake wires
Cable description
Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors
Nominal cross section conductor
2.08
Nominal cross section conductor (AWG)
4.1
Cable style
Standard, non-flexible
Weight, approx
Continuous-flex, power with brake wire: 0.289 kg/m
Twisted cores
No
Accessory component
Cable
Static bend radius
Standard (non-flex) and continuous flex: 7 times the cable diam
Features
Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol
Max. conductor temperature
105
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
24.613
Lead Time
39
Dimension Width
31.699
Dimension Length
32.512
Stock Status
NON_STOCKED
Weight
8.215
Weight Unit
KG
Dimension Unit
CM
