22B-E019F104

Name: 22B-E019F104
Brand: ROCKWELL
SKU: 22B-E019F104

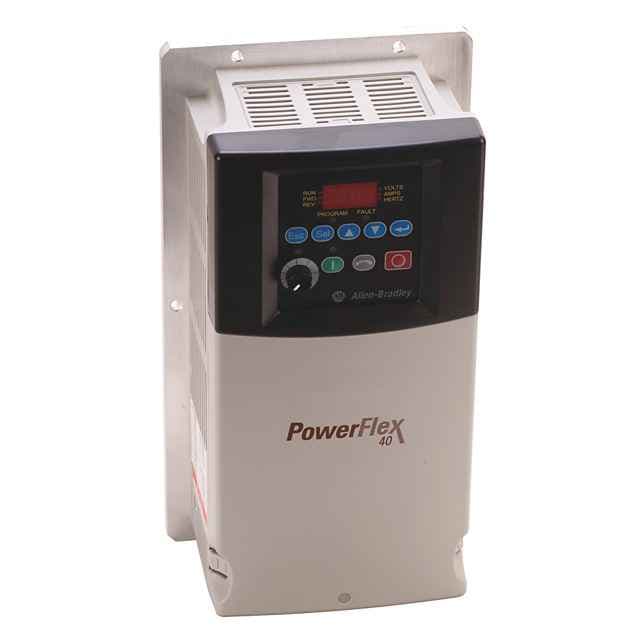

The Allen-Bradley 22B-E019F104 PowerFlex 40 AC drive delivers 11 kW (15 HP) power with a 600V AC, three-phase input. It features a flange-mounted design, IP20/NEMA open-type enclosure, and dynamic braking capability, making it suitable for various industrial applications.

Product Model22B-E019F104

Product ID106757

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. High Power OutputThe 22B-E019F104 PowerFlex 40 AC drive offers 11 kW (15 HP) power, making it suitable for demanding industrial applications like fans, conveyors, and material handling systems.
2
2. Compact DesignWith a flange-mounted design, this drive reduces overall enclosure size, saving space in your control panel and enhancing installation flexibility.
3
3. Environmental ProtectionThe drive comes with an IP20/NEMA open-type enclosure, providing environmental protection from dust and dirt particles up to 12mm in size. An optional IP30 rating enclosure is also available for additional protection.
4
4. Advanced Control FeaturesEquipped with V/Hz and sensorless vector control, this drive provides exceptional speed control and high torque levels across its entire speed range. The autotune feature adapts to motor characteristics, ensuring optimal performance.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Frequency Rating

50-60

Current

600 V AC

Repairable

REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

33.973

5. User-Friendly InterfaceThe drive features a 4-digit display with 10 LED indicators and an integral keypad for better user control and operation. It can also be programmed from a PC using an integral RS-485 communication port, enhancing flexibility and ease of use.

6. Dynamic Braking CapabilityThe low-cost integral brake transistor facilitates dynamic braking capability, allowing for smooth and controlled deceleration of the motor, which is crucial in applications requiring precise control.

7. Enhanced Communication OptionsThe drive supports various communication protocols such as DeviceNet, ControlNet, EtherNet/IP, PROFIBUS DP, and LonWorks, making it easy to integrate into existing control systems. Additionally, an optional DSI Wireless Interface Module (WIM) can be added for enhanced communication capabilities.

8. Standard Features for Better PerformanceThe drive includes removable MOV, drive overload protection, relay pre-charge, and adjustable PWM frequency for quiet operation, ensuring reliable and efficient performance in various industrial settings.

Dimension Width

38.608

Dimension Length

51.118

Stock Status

NON_STOCKED

Weight

12.247

Weight Unit
