22F-D024N104

Name: 22F-D024N104
Brand: ROCKWELL
SKU: 22F-D024N104

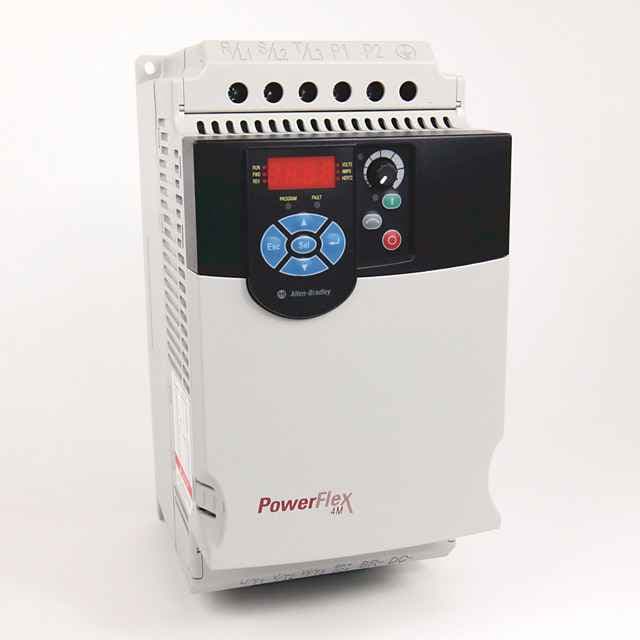

The Allen-Bradley 22F-D024N104 is a robust AC drive designed for 11 kW (15 HP) applications. It operates at 480V AC input, 3-phase, and delivers a 24A output. Featuring an IP20 rating and integral keypad with potentiometer and LED display, this drive is ideal for panel mounting and includes a brake IGBT for precise control.

Product Model22F-D024N104

Product ID106676

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. High Power OutputThe Allen-Bradley 22F-D024N104 delivers 11 kW (15 HP) of power, making it suitable for demanding industrial applications.
2
2. Flexible Input RangeOperating at 480V AC input with 3-phase operation, this drive can handle a wide range of industrial power requirements.
3
3. Enhanced ControlEquipped with a brake IGBT, this drive offers precise control and reliability in various industrial settings.
4
4. Compact DesignFeaturing an IP20 rating, this drive is designed for panel mounting, ensuring a compact and efficient installation.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Input Voltage Rating

480V AC

Output Current Rating

24 A

Repairable

REPAIRABLE

Preferred Availability

true

Quick Turnaround

false

Dimension Height

24.31
