2090-CSBM1DF-18AA10

Name: 2090-CSBM1DF-18AA10
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AA10

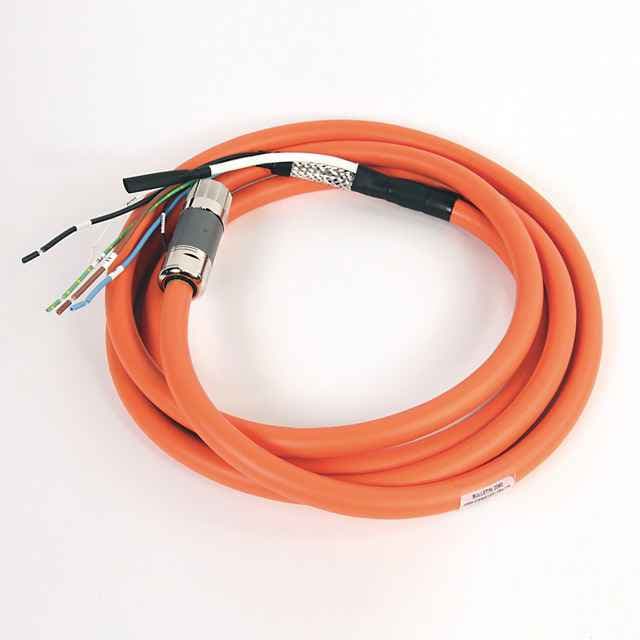

Allen-Bradley 2090-CSBM1DF-18AA10: A non-flexible, 18 AWG single motor power cable for Kinetix 5500 drives, with a Single SpeedTec DIN connector and flying lead at the drive end, available in 10 meters.

Product Model2090-CSBM1DF-18AA10

Product ID106654

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. CompatibilityDesigned specifically for the Kinetix 5500 drive system, ensuring seamless integration and optimal performance.
2
2. Wire Gauge18 AWG wire provides reliable power transmission with minimal resistance, ensuring efficient motor operation.
3
3. Connector TypeEquipped with a Single SpeedTec DIN connector, offering secure and durable connections.
4
4. FlexibilityNon-flexible design ensures consistent performance and longevity in various industrial applications.
5
5. Length

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

15 mm

Core colour

White

Cable length

10 m

Available in a 10-meter length, providing ample cable length for most industrial settings without compromising on performance.

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

true

Quick Turnaround

false

Dimension Height

13.995

Lead Time

Dimension Width

31.191

Dimension Length

38.71

Stock Status

STOCKED

Weight

3.032

Weight Unit

Dimension Unit
