2090-CSBM1DF-14AA26

Name: 2090-CSBM1DF-14AA26
Brand: ROCKWELL
SKU: 2090-CSBM1DF-14AA26

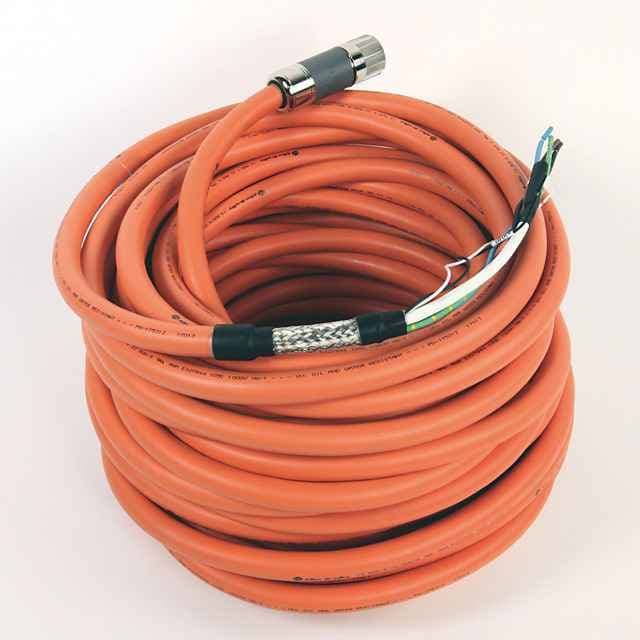

Allen-Bradley 2090-CSBM1DF-14AA26: 14 AWG single motor power cable with flying leads, optimized for Kinetix 5700. Standard non-flexible design, 1000V hybrid cable with power, feedback, and brake conductors.

Product Model2090-CSBM1DF-14AA26

Product ID106358

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Optimized for Kinetix 5700Designed to work seamlessly with Kinetix 5700 servo drives, ensuring high performance and reliability in your applications.
2
2. 14 AWG Wire SizeProvides robust connectivity with a 14 AWG wire size, suitable for demanding industrial environments.
3
3. Flying LeadsPre-installed flying leads at the drive end simplify installation and reduce setup time, enhancing overall efficiency.
4
4. Standard Non-Flexible DesignIdeal for applications where minimal flexibility is required, ensuring consistent performance and durability.
5

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Outer diameter approx.

Core colour

White

Cable length

26 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

5. 1000V Hybrid CableFeatures a 1000V hybrid cable with four power, two feedback (digital communication), and two brake conductors, making it versatile for various motor control needs.

Number of cores

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

2.08

Nominal cross section conductor (AWG)

4.1

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.289 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

20.32

Lead Time

Dimension Width

32.766

Dimension Length

34.798

Stock Status

NON_STOCKED

Weight

9.243

Weight Unit
