High-interrupting capacity, 65kA at 480V, 800A rating, UL, CSA, CE, CCC compliant. Ideal for global electrical systems.

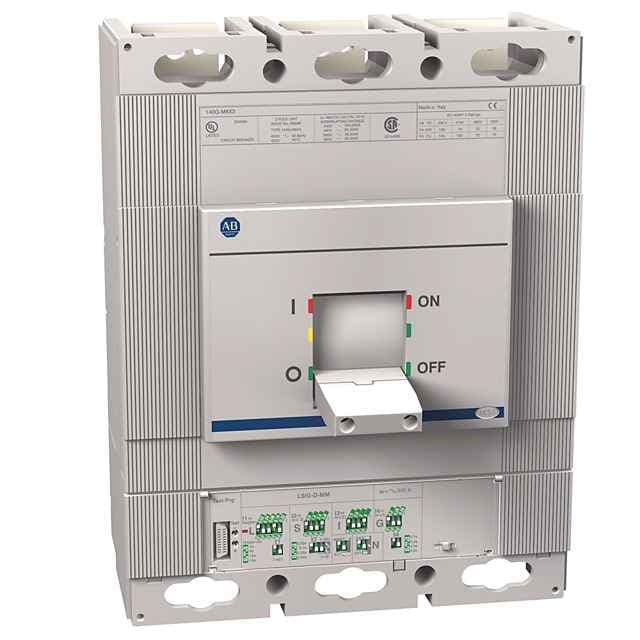

Product Model140G-M6K3-D63
Product ID106199
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. High Interrupting CapacityThe 140G-M6K3-D63 boasts a 65kA interrupt rating at 480V, ensuring reliable operation in high-demand electrical systems.
2
2. Comprehensive CertificationsCertified to UL, CSA, CE, and CCC standards, making it suitable for a wide range of global applications.
3
3. Efficient DesignDesigned with a compact footprint, this circuit breaker minimizes space requirements in panel configurations, making it ideal for space-constrained installations.
4
4. Customizable Trip UnitsOffers adjustable thermal and magnetic trip units (TMA), allowing for greater customization to fit various panel configurations and application needs.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Adjustment Type
LSIG-MM
Certifications
UL Listed, CSA Certified, CE, CCC
IEC Breaking Capacity
70kA @ 415V
Rating/Size
800 A, M-Frame
Standards Compliance
UL489, CSA22.2 No. 5, IEC 60947-2
Trip Unit Rating
630A
5. Global Application CompatibilityApproved for use in both three-phase and single-phase systems, as well as DC power systems, ensuring versatility in diverse electrical applications.
UL Interrupting Rating
65kA @ 480V
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
30.8
Lead Time
36
Dimension Width
29.6
Dimension Length
37.0
Stock Status
NON_STOCKED
Weight
10.446
Weight Unit
KG
Dimension Unit
CM
Allen Bradley 140G-M6K3-D63 Molded Case Circuit Breaker - High Interrupting Capacity | INDSLT
