2090-CSBM1DF-18AA50

Name: 2090-CSBM1DF-18AA50
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AA50

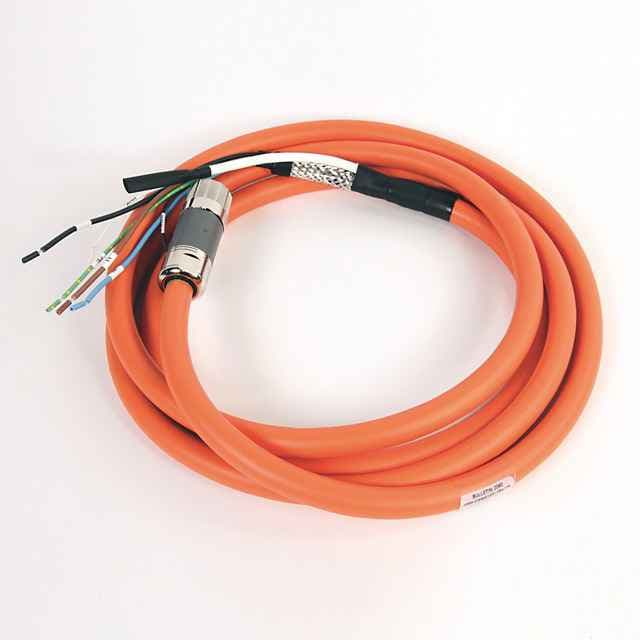

The Allen Bradley 2090-CSBM1DF-18AA50 is a reliable, single motor power cable designed for Kinetix 5500 drives. It features 18 AWG wire and is optimized for continuous operation with a maximum conductor temperature of 105°C.

Product Model2090-CSBM1DF-18AA50

Product ID106069

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Optimized for Kinetix 5500 DrivesThe 2090-CSBM1DF-18AA50 is specifically designed to work seamlessly with Kinetix 5500 drives, ensuring optimal performance and reliability in your industrial applications.
2
2. High-Quality 18 AWG WireThe cable features 18 AWG wire, which provides excellent conductivity and durability, ensuring that your motor operates efficiently and consistently.
3
3. Standard Non-Flex CableThe 2090-CSBM1DF-18AA50 is a standard non-flex cable, making it ideal for applications where minimal flexibility is required. This design ensures that the cable maintains its integrity under various conditions.
4
4. Continuous Operation CapabilityWith a maximum conductor temperature of 105°C, this cable is designed to handle continuous operation, making it suitable for demanding industrial environments.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Motor-end Connector Type

Single SpeedTec DIN Connector

Outer diameter approx.

15 mm

Core colour

White

5. Enhanced EMC/EMI PerformanceThe cable features a tinned copper braid with aluminum/polyester tape, providing 100% coverage for excellent EMC/EMI performance. This ensures that your system operates with minimal interference, maximizing efficiency and reliability.

Cable length

50 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

Number of cores

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

32.995

Lead Time

Dimension Width

40.005

Dimension Length

40.005

Stock Status

NON_STOCKED

Weight

16.397

Weight Unit
