2090-CSBM1DF-18AA39

Name: 2090-CSBM1DF-18AA39
Brand: ROCKWELL
SKU: 2090-CSBM1DF-18AA39

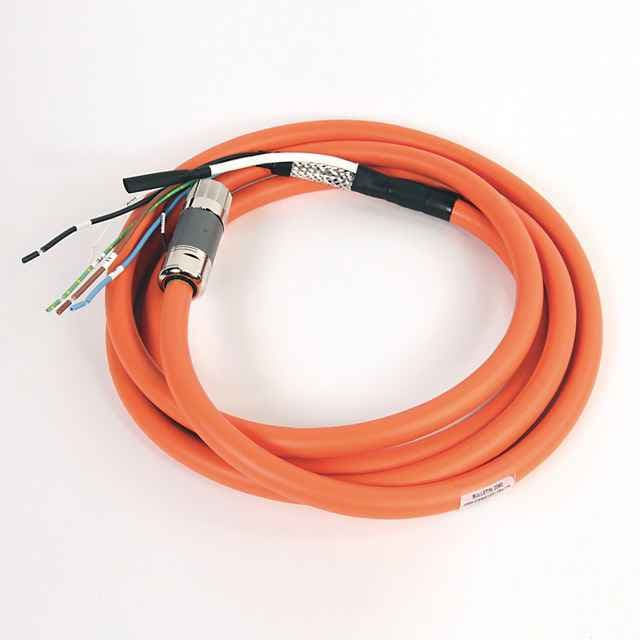

The Allen Bradley 2090-CSBM1DF-18AA39 is a high-quality single motor cable specifically designed for use with Kinetix 5500 drives. It includes 18 AWG wire, standard non-flex construction, and a 3-meter cable length. This cable is perfect for applications requiring power, feedback, and brake connections.

Product Model2090-CSBM1DF-18AA39

Product ID105947

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. CompatibilityDesigned specifically for Kinetix 5500 drives, ensuring seamless integration and optimal performance.
2
2. Wire GaugeFeatures 18 AWG wire, providing reliable and efficient power transmission.
3
3. Construction TypeStandard non-flex construction, suitable for applications where minimal flexibility is required.
4
4. Cable LengthAvailable in a 3-meter cable length, ideal for various motor installation scenarios.
5
5. Application VersatilitySuitable for power, feedback, and brake applications, making it a versatile choice for diverse motor control needs.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Accessory Component

Single DSL

Cable Style

Standard, Non-flex

Drive-end Connector Type

Flying Lead at 5500 Drive End

Outer diameter approx.

15 mm

Core colour

White

Cable length

39 m

Drive-end connector type

Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)

With protective conductor

Yes

Core identification

Colour

Colour outer sheath

Orange

Conductor material

Copper

Conductor surface

Tinned

Color cable code

RAL2003

Core color

White/blue

Motor-end connector type

Single speedTec DIN connector

AWG size

18 AWG

Nominal voltage U

1000

Cable type

Single motor power with brake wires

Cable description

Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor

0.82

Nominal cross section conductor (AWG)

1.62

Cable style

Standard, non-flexible

Weight, approx

Continuous-flex, power with brake wire: 0.228 kg/m

Twisted cores

Accessory component

Cable

Static bend radius

Standard (non-flex) and continuous flex: 7 times the cable diam

Features

Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature

105

Repairable

NOT_REPAIRABLE

Preferred Availability

false

Quick Turnaround

false

Dimension Height

33.0

Lead Time

Dimension Width

44.001

Dimension Length

44.001

Stock Status

NON_STOCKED

Weight

13.73

Weight Unit

Dimension Unit
