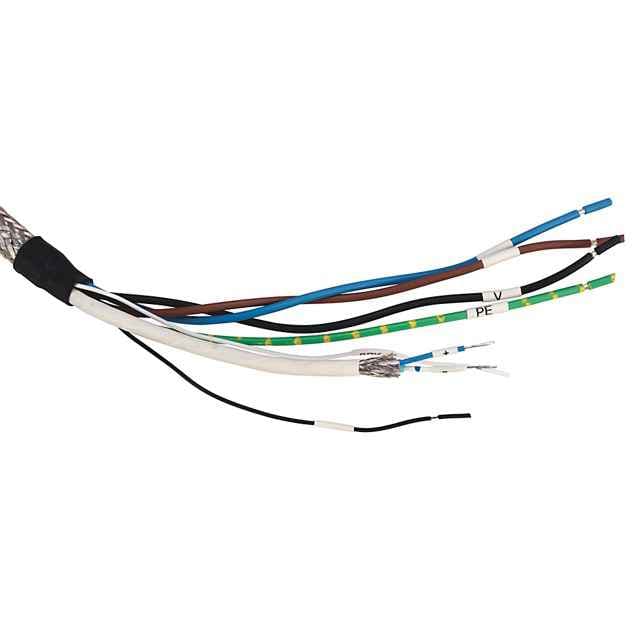

Allen Bradley 2090-CSBM1DF-14AA09: 14 AWG non-flex servo cable with flying leads for Kinetix 5500 drives, includes power, brake, and feedback connections.
Product Model2090-CSBM1DF-14AA09
Product ID105765
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. High-Quality ConstructionThe Allen Bradley 2090-CSBM1DF-14AA09 is crafted with high-quality materials, ensuring durability and reliability in demanding motion control applications.
2
2. Versatile ConnectivityThis servo cable supports power, brake, and feedback connections, making it versatile for various motion control systems.
3
3. Suitable for Kinetix 5500 DrivesDesigned specifically for use with Kinetix 5500 drives, this cable ensures seamless integration and optimal performance.
4
4. Non-Flex Cable DesignThe 14 AWG non-flex cable minimizes the risk of damage from flexing, ensuring consistent performance over time.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Cable Style
Standard, Non-flex
Drive-end Connector Type
Flying Lead at 5500 Drive End
Motor-end Connector Type
Single SpeedTec DIN Connector
Outer diameter approx.
17
Core colour
White
Cable length
9 m
5. Compliant with Industry StandardsMeets NFPA 79, DESINA, UL, and CSA standards, ensuring compliance with industry regulations and safety protocols.
Drive-end connector type
Drive-end, without connector kit, flying-lead (optimized for Kinetix 5500)
Number of cores
8
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Orange
Conductor material
Copper
Conductor surface
Tinned
Color cable code
RAL2003
Core color
White/blue
Motor-end connector type
Single speedTec DIN connector
AWG size
14
Nominal voltage U
1000
Cable type
Single motor power with brake wires
Cable description
Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors
Nominal cross section conductor
2.08
Nominal cross section conductor (AWG)
4.1
Cable style
Standard, non-flexible
Weight, approx
Continuous-flex, power with brake wire: 0.289 kg/m
Twisted cores
No
Accessory component
Cable
Static bend radius
Standard (non-flex) and continuous flex: 7 times the cable diam
Features
Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol
