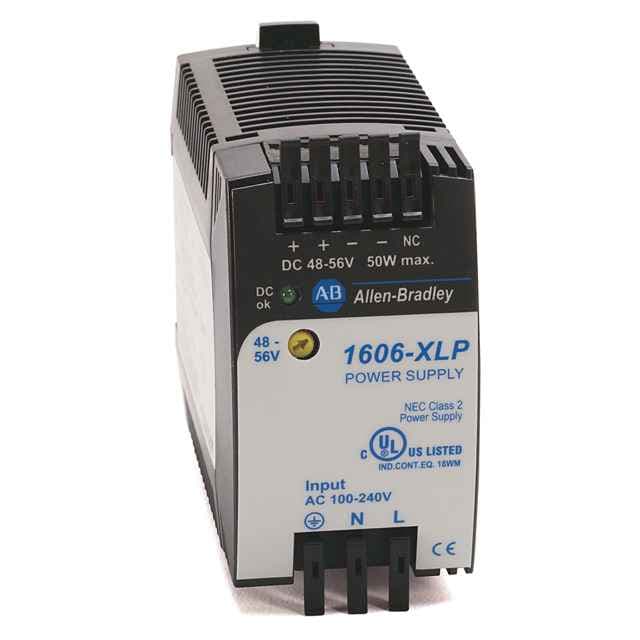

Compact, 50W, 48V DC power supply with global input voltage, designed for cost-effective space savings in industrial applications.
Product Model1606-XLP50F
Product ID105603
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. Compact DesignThe Allen-Bradley 1606-XLP50F is designed to be compact, making it ideal for space-saving installations in industrial settings.
2
2. Global Input VoltageThis power supply accepts a wide range of AC and DC voltages, meeting most worldwide single- and three-phase requirements and all global safety standards.
3
3. ReliabilityBuilt to withstand rigorous industrial environments, ensuring long-term performance and minimal downtime.
4
4. EfficiencyDesigned to reduce energy consumption and costs, making it a cost-effective solution for industrial automation needs.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Product Family
Power Supply XLP
Height
75 mm
Depth
91 mm
Direct mounting possible
No
Width
45 mm
Degree of protection (IP)
IP20
5. DurabilityManufactured to meet global safety standards, ensuring the power supply is reliable and durable in demanding industrial applications.
Type of electric connection
Spring clA connection
Shock
30 G, 6 ms 20G, 11 ms
Special functions
No special function
MTBF
600000 hr @ 40 °C, SN 29500
Wall mounting possible
Yes
Degree of protection (NEMA)
Other
Vibration
2 g
Secondary voltage adjustable
Yes
Power output
50 W
Voltage type of supply voltage
AC/DC
Rated supply voltage at DC
85 V
Efficiency, typ
90 %
Adjustment range
48 V
Operational range
85...264V AC
Phases
1-phase
Sub group
Compact family
Hold-up time
>170 ms @ 230V AC
Input voltage
100â¦240V AC
Special family function
No power boost
Rated input current
<1.0A @ 100V AC
Special feature
-
Output voltage stabilized
Yes
Rail mounting possible
Yes
Stabilized
Yes
Ripple and noise, max
50 mV
Operating temperature
-10 °C
Storage temperature
-40 °C
Relative humidity
5 to 95 %
Weight
0.318
Repairable
NOT_REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
6.502
Lead Time
63
Dimension Width
12.7
Dimension Length
14.402
Stock Status
NON_STOCKED
Weight Unit
KG
Dimension Unit
CM
