16 individually isolated DC inputs, 12/24V DC sink/source, compatible with ControlLogix chassis, ideal for local and remote I/O configurations.

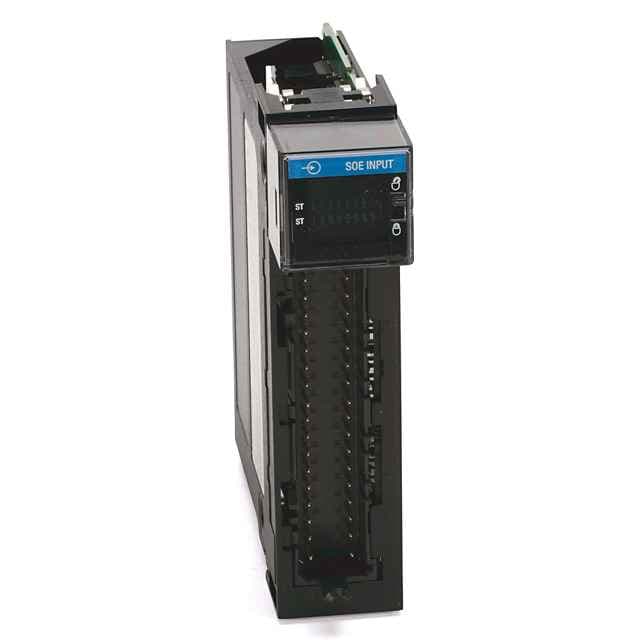

Product Model1756-IB16ISOEK
Product ID105522
Stock on Request
Last updated: 8/29/2026
Key Features
1
1. 16 Individually Isolated InputsThe 1756-IB16I module offers 16 discrete inputs, each isolated to prevent interference and ensure reliable signal processing.
2
2. 12/24V DC Sink/Source Voltage CategoryThis module supports both sink and source configurations, making it versatile for various DC voltage applications.
3
3. Compatibility with ControlLogix ChassisThe module is designed to be single-slot and can be installed in any ControlLogix chassis, providing flexibility in system design.
4
4. Removable Terminal Block (RTB) CompatibilityThe module requires the use of a Removable Terminal Block (RTB) for easy connection and disconnection of field-side wiring, reducing downtime and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Isolation
250 V continuous between inputs
Number Of Channels
16
Repairable
REPAIRABLE
Preferred Availability
false
Quick Turnaround
false
Dimension Height
5.588
5
5. High Reliability and DurabilityBuilt with high-quality components, this module ensures reliable operation over a wide temperature range, making it suitable for demanding industrial environments.
