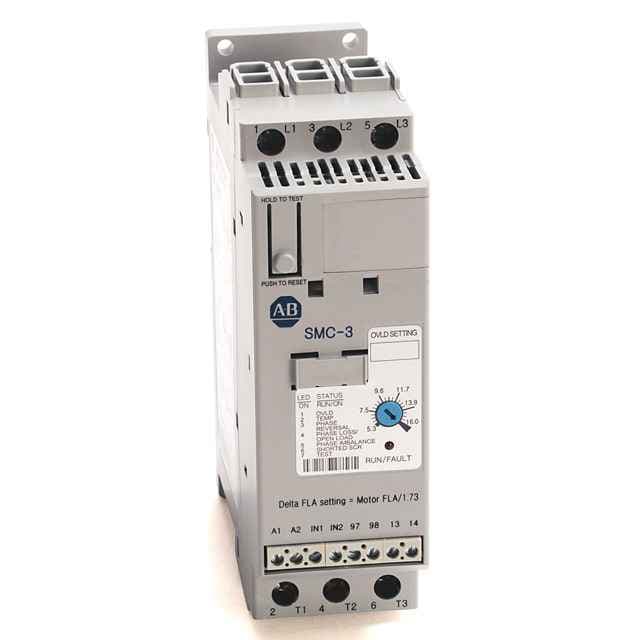

150-C361NCR

Name: 150-C361NCR
Brand: ROCKWELL
SKU: 150-C361NCR

The Allen Bradley 150-C361NCR is a high-performance smart motor controller for 3-phase delta-connected motors. It offers advanced protection features, comprehensive diagnostics, and user-friendly operation, ensuring reliable and efficient motor speed management.

Product Model150-C361NCR

Product ID105309

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Advanced Protection FeaturesThe 150-C361NCR includes integral bypass for efficient motor speed management, comprehensive overload protection, and motor diagnostics, ensuring the longevity of your motor.
2
2. User-Friendly OperationEquipped with an LED display and a Test/Reset button, this controller makes setup and monitoring straightforward, even for complex applications.
3
3. Robust DesignDesigned to withstand shock tolerances of 30 G during operation and 50 G when non-operational, this controller is built for durability in various environments.
4
4. Versatile CompatibilityCompatible with a wide range of voltages (200-600V AC) and frequencies (50/60 Hz), making it suitable for various industrial applications.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Family

SMC-3

With display

Voltage type for actuating

AC/DC

Rated operating voltage Ue

200

Rated control supply voltage at AC 50 Hz

24 V

Rated control supply voltage at AC 60 Hz

24 V

5. Enhanced DiagnosticsInternal thermal monitoring and programmable electronic overload protection ensure that the motor operates within safe parameters, reducing the risk of damage or failure.

DV/DT protection

1000V/Î¼s for power circuit

Repetitive peak voltage

1600V per UL/CSA/NEMA for power circuit

Operating frequency

50/60 Hz per UL/CSA/NEMA for power circuit

Overvoltage category

III per IEC for side mount auxiliary contacts

Rated impulse voltage

6 kV for power circuit

Dielectric withstand

2500V AC per IEC for power circuit

Delta connected motor current

208...625A @ 500/575V AC, 3-phase

Insulation voltage

Rated 600V AC per UL/CSA/NEMA for power circuit

Rated operational voltage

250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts

Rated control power during start with fan

200mA @ 120V AC/120mA @ 240V AC, 600mA @ 24V AC/DC

Input OFF-state current

<10 mA, <12 mA @ input off-state voltage (IN1, IN2) for control circuit

Short-circuit protection device list

Non-time delay Thermal magnetic circuit breaker High capacity time delay class CC/J/L

Number of contacts

TB-97, -98 (OVLD/Fault): 1 for auxiliary contacts

High capacity available fault current, max

69kA @ 600V, maximum current 600 A time delay Class J or Class L fuse for line connected motors

Type of current

TB-97, -98 (OVLD/Fault): AC/DC for auxiliary contacts

Conventional thermal current (Ith)

TB-97, -98 (OVLD/Fault): 1 A for auxiliary contacts

Type of control circuit

TB-97, -98 (OVLD/Fault): Electromagnetic relay for auxiliary contacts

Type of contacts

TB-97, -98 (OVLD/Fault): Normally Open (N.O.) for auxiliary contacts

Utilization category

TB-23, -24 (normal/up-to-speed), TB-33, -34 (normal/up-to-speed): C300/R150 per UL/CSA/NEMA for Side mount auxiliary contacts

Rated operational current, max

TB-97, -98 (OVLD/Fault): 0.6A @ 120V AC and 0.3A @ 240V AC for auxiliary contacts

Standard controller feature

Soft stop

Rated control supply voltage at DC

24 V

Integrated motor overload protection

Yes

Short circuit protection device performance (SCPD) type

Type 1

Selectable overload trip class

Trip Class 10, 15, or 20

Selectable start times

2, 5, 10, 15, 20, 25, or 30 s

Input OFF-state voltage (IN1, IN2), max

40V AC @ 17V DC/12V AC for control circuit

Selectable current limit

150%, 250%, 350%, and 450% of full load current

Input ON-state voltage, during start (IN1, IN2)

85V AC @ 19.2V DC/19.2V AC minimum for control circuit

Input ON-state current (IN1, IN2)

9.8mA @ 120V AC/19.6mA @ 240V AC for control circuit, 7.3mA @ 24V AC/DC for control circuit

Degree of protection (IP)

IP2X

Weight

43.772

Shock

Opsal: 15 G

Width

290 mm (11.42 in)

Height

600 mm (23.62 in)

Cable size

0.2...2.5 mm2 (24...14 AWG) for control terminals

Vibration

Opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement

Make

TB-97, -98 (OVLD/Fault): 432VA for auxiliary contacts

Break

TB-97, -98 (OVLD/Fault): 72VA for auxiliary contacts

Tightening torque

0.45...0.9 Nm (4.0...8.0 in-lb) for control terminals

Internal bypass

Yes

Function

Single direction

Selectable kick start - 450% FLA

0, 0.5, 1.0, or 1.5 s

Selectable initial torque

15%, 25%, 35%, and 65% of locked rotor torque

Selectable soft stop

Off, 100%, 200%, or 300% of the start time setting when wired

Mounting hole size

11.5 mm

Number of poles

Equipment is designed for 3-phase only for power circuit

Enclosure

Open type

Storage and transportation temperature

-25 Â°C

Rated surrounding temperature range without derating

-5 Â°C

Humidity

5...95% noncondensing

Operating temperature

Open: -5 to 50 Â°C (23 to 122 Â°F)

EMC emission levels

Radiated emission: Class A per IEC

EMC immunity levels

Surge transient: per EN/IEC 60947-4-2 per IEC

Altitude

2000 m
