Rail Chassis Terminal Blocks

WAGO 880-328 end and intermediate plate, 2.5 mm thick, orange. Used for rail mount terminal blocks.

The WAGO 880-339 is an end and intermediate plate, 2.5 mm thick, in orange. It is designed for use with rail-mounted terminal blocks.

Separator plate for organizing DIN rail terminal blocks, 2 mm thick, oversized, and orange.

End and intermediate plate, 2.5 mm thick, gray.

Separator plate for DIN rail terminal blocks, 2 mm thick, gray. Ideal for organizing and separating terminal blocks.

Orange end and intermediate plate, 2.5 mm thick. Suitable for rail mount terminal blocks. Durable and reliable.

3-conductor through terminal block; 4 mm²; with test port; without shield contact; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; gray.

3-conductor through terminal block with test port, CAGE CLAMP technology, and DIN-rail compatibility.

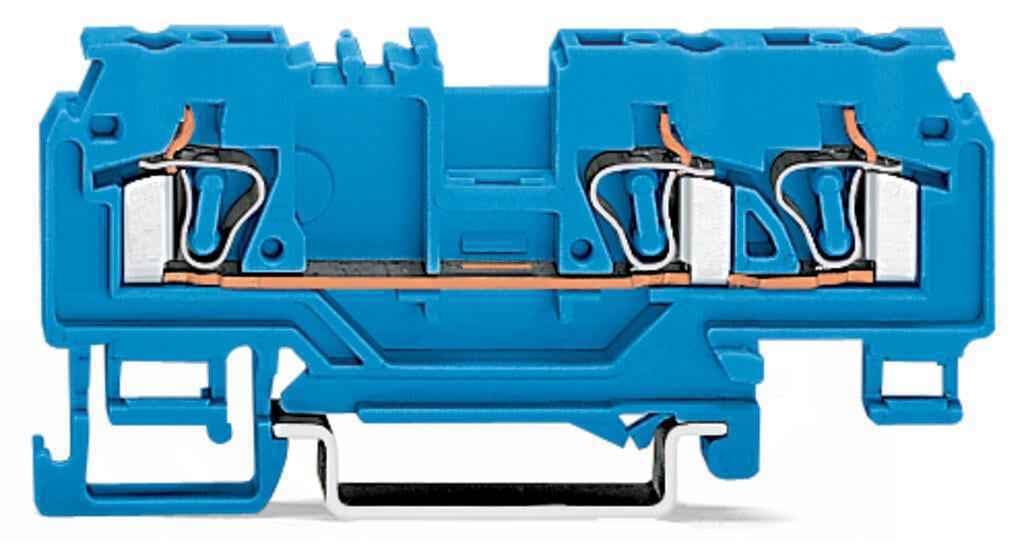

WAGO 880-684 is a 3-conductor through terminal block designed for DIN-rail mounting, featuring a test port and CAGE CLAMP connection technology.

3-conductor through terminal block with test port, suitable for Ex i applications, and compatible with DIN-rail 35 x 15 and 35 x 7.5.

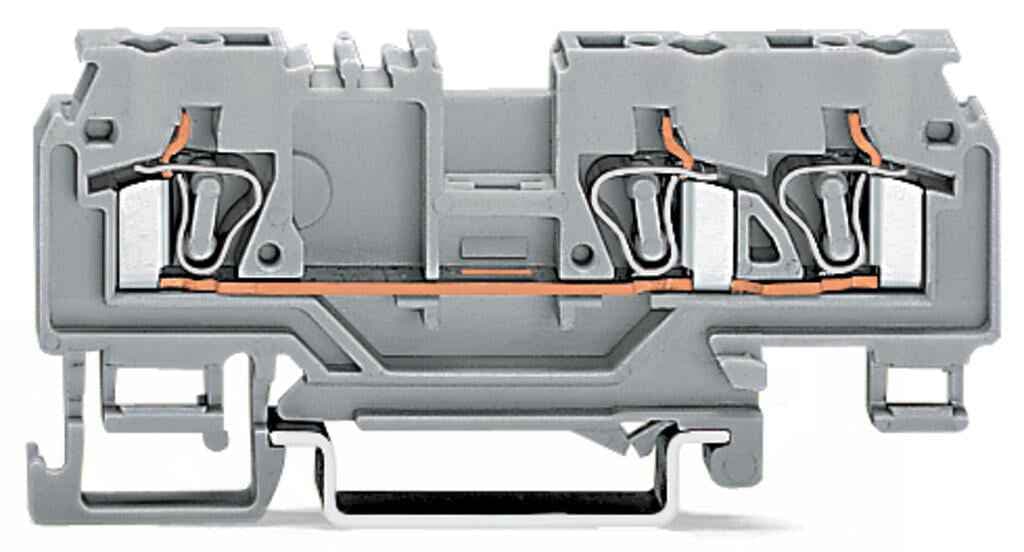

The WAGO 880-687 is a versatile 3-conductor ground terminal block designed for DIN-rail mounting. It supports conductors from 12 to 28 AWG and features CAGE CLAMP technology for secure connections.

4-conductor through terminal block with test port and center marking. Compatible with DIN-rail 35 x 15 and 35 x 7.5. Features CAGE CLAMP® technology.

4-conductor through terminal block with test port, center marking, and CAGE CLAMP® connections for DIN-rail 35 x 15 and 35 x 7.5.

WAGO 880-832 is a 4-conductor through terminal block designed for DIN-rail applications, featuring a test port and center marking.

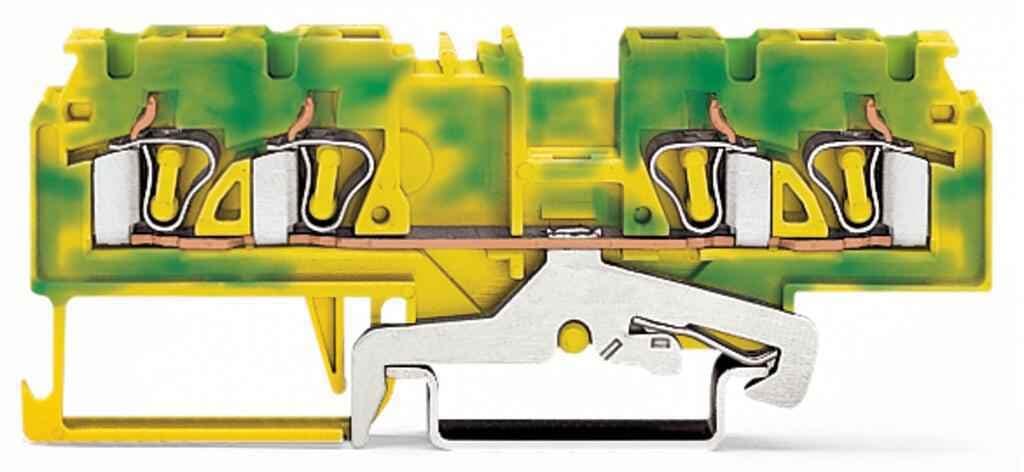

Contact us for 880-837 specifications, availability and lead time.

4-conductor ground terminal block with CAGE CLAMP technology for secure connections on DIN-rail 35 x 15 and 35 x 7.5.

2-conductor through terminal block; 4 mm²; with test port; without shield contact; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4,00 mm²; gray

Gray, single-deck 2-conductor through terminal block with test port and CAGE CLAMP connections for DIN-rail mounting.

Efficient wire connection and distribution with CAGE-CLAMP spring connections and a test port.

WAGO's 2-conductor through terminal block is designed for Ex i applications, featuring a test port and center marking. It is compatible with DIN-rail 35 x 15 and 35 x 7.5, utilizing CAGE CLAMP® technology.
