Rail Chassis Terminal Blocks

Insulation stop for WAGO rail mount terminal blocks, compatible with 0.08-0.2 mm² solid and 0.14 mm² fine-stranded conductors.

Additional module for matrix patchboards with snap-on fixing, contact to mounting frame, and CAGE CLAMP® connection technology.

Insulated matrix patchboard with 80 poles, CAGE CLAMP® connections, and front-entry wiring. Ideal for Ex i applications.

The WAGO 727-105 is an 8-level end plate with marking 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1, made of polyamide, and is 7.62 mm thick.

The WAGO 727-106 is an 8-level end plate designed for rail and chassis terminal blocks, featuring a thickness of 7.62 mm and orange color.

8-level end plate for WAGO 864, marked 7-6-5-4-3-2-1-0--0-1-2-3-4-5-6-7, ROHS compliant.

WAGO 727-108 8-level end plate, ideal for rail mount terminal blocks. Orange, 7.62 mm thick.

Contact us for 727-113 specifications, availability and lead time.

Plain 8-level end plate, 7.62 mm thick, blue. Suitable for rail mount terminal blocks in the Matrix Patch Board series.

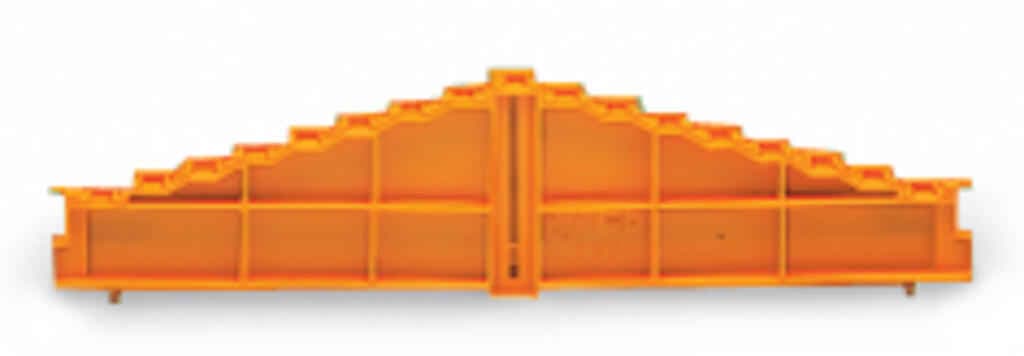

WAGO 727-115 8-level end plate, plain, 7.62 mm thick, white. Suitable for electrical connections.

WAGO 727-117 is an 8-level end plate, plain, 7.62 mm thick, and orange, suitable for 864.

8-level terminal block for matrix patching, no locking clips, 2.3 mm Ø test port, for 35 x 7.5 mounting rail.

8-level terminal block for matrix patching with locking clips and a 2.3 mm Ø test port.

8-level terminal block for matrix patching without locking clips, suitable for 35 x 7.5 mounting rail.

8-level end plate; marking: a-b-c-d-e-f-g-h--h-g-f-e-d-c-b-a; 7.62 mm thick.

8-level same potential terminal block; with locking clips; all clamping units internally commoned; with 2.3 mm Ø test port; for 35 x 7.5 mounting rail.

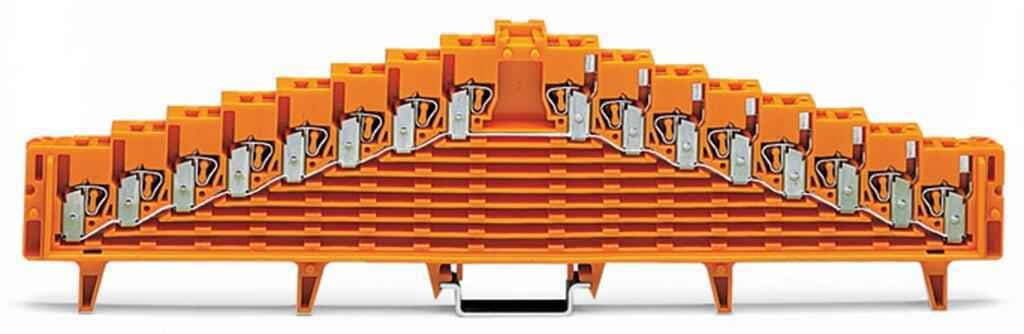

The WAGO 727-126 is an 8-level same potential terminal block designed for 35 x 7.5 mm mounting rails. It features internally commoned clamping units and a 2.3 mm Ø test port, ideal for various electrical connection needs.

8-level same potential terminal block; with locking clips; all clamping units internally commoned; with 2.3 mm Ø test port; for 35 x 7.5 mounting rail.

8-level same potential terminal block for matrix patching with CAGE CLAMP connections, suitable for DIN-35 rail mounting.

8-level same potential terminal block for 35 x 7.5 mounting rail, without locking clips and with 2.3 mm Ø test port.
