Speed control valves, metering valves

The CKD SC1-6 speed controller is a compact, lightweight inline valve designed for precise air flow control. Suitable for cylinders from Φ20 to Φ50 mm, it offers adjustable speed control and is ideal for space-saving piping and low-speed applications.

The CKD SC1-8 Speed Controller is an inline speed controller designed for medium bore size applications. It features adjustable flow rates, a durable aluminum diecast body, and can be mounted from either the bottom or side. Ideal for compressed air control, it ensures precise flow regulation and reliability in various industrial settings.

The CKD SC1-8-W speed controller is designed for medium bore size applications, providing precise control over compressed air flow. With a maximum working pressure of 1.0 MPa and a proof pressure of 1.5 MPa, it ensures reliable operation in a wide range of industrial settings. Its compact design and adjustable dial make it easy to integrate into your system, enhancing overall efficiency and performance.

The CKD SC3P-10-6 universal elbow push to connect flow control valve provides flexible piping direction and low speed options, ideal for fine adjustment and control of devices with lower flow rates. Flame-resistant and adjustable.

The CKD SC3P-15-8 speed control valve is designed for precise air flow control, featuring a stainless steel construction and compatible with compressed air. It ensures high precision and reliability in various industrial applications.

The CKD SC3P-6 speed controller is a high-precision, corrosion-resistant valve designed for controlling compressed air flow. It features a stainless steel construction and is compatible with 4mm tubes, making it suitable for fine speed cylinders and other low-flow rate applications.

The CKD SC3P-8-6 speed control valve is designed with a stainless steel body, providing excellent corrosion resistance and compatibility with ozone-resistant materials. It is perfect for use in environments susceptible to copper ions, ensuring reliable operation and precise control.

The CKD SC3P-M5-4 is a one-touch speed controller for compressed air, offering precise control with a maximum working pressure of 1.0 MPa and proof pressure of 1.5 MPa. Suitable for industrial applications, it ensures reliable and adjustable air flow.

The CKD SC3R-10 speed controller provides flexible piping direction and prevents needle dislocation, ensuring precise low-speed adjustments. Suitable for cleanroom applications and demanding air flow control needs.

CKD SC3R-15 Speed Controller: Precise control and flexible piping direction for compressed air systems. Suitable for various industries, ensuring efficient air flow management.

"Control air flow with precision using the CKD SC3R-6 1/8 inch air fitting flow control valve. Ideal for industrial applications, this valve ensures flexible piping direction and easy low-speed adjustment."

The CKD SC3R-8 speed control valve is designed for direct piping and elbow applications, providing flexible piping direction and easy low-speed adjustment. It features needle dislocation prevention for reliable operation.

The CKD SC3R-M5 speed controller offers precise flow control with a maximum working pressure of 1.0 MPa and a minimum working pressure of 0.05 MPa. Suitable for temperatures from 5°C to 60°C, it ensures stable and controlled airflow in various industrial applications.

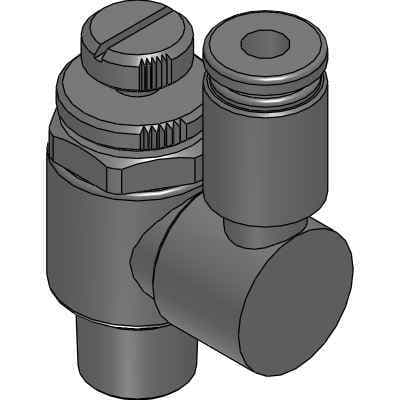

Short Description: The CKD SC3U-10-8 universal elbow push-to-connect valve provides a flow rate of 270 l/min, ensuring efficient fluid control in industrial settings. Made from flame-resistant PBT, it operates within 0.05 to 1 MPa pressure range.

The CKD SC3U-15-10 universal speed controller features a 360° adjustable piping direction, flame-resistant resin, and a coated piping screw for improved safety and reliability. Suitable for diverse applications where precise speed control is essential.

CKD SC3U-6-4: Universal elbow push-to-connect with 270 l/min flow rate, 360° piping direction, and flame retardant resin. Suitable for compressed air applications with 0.05 to 1 MPa operating pressure and 0 to 60°C temperature range.

The CKD SC3U-8-6 universal speed controller is designed with a quick-connect fitting, ensuring easy installation and operation. It features a flow rate of 270 l/min, operates within 0.05~1 MPa, and is constructed from flame-resistant PBT, making it suitable for a wide range of applications.

The CKD SC3U-M3-3 speed controller is a compact, lightweight device designed for fine speed adjustments in compressed air systems. It features flame-resistant materials and adjustable flow rates, ensuring reliable performance in various applications.

CKD SC3U-M5-3: Universal speed controller with push-in fitting, flame-resistant PBT, and fluorine-based resin sealant. Suitable for compressed air systems.

The CKD SC3W-10-6 speed controller elbow is designed for fine flow control in pneumatic systems. It features a push-in fitting, flexible piping direction, and is made with flame-resistant materials. Perfect for devices requiring low flow rates, this elbow ensures precise adjustment and reliability.
