T4N250 MA160/960-2240 P MP 3P

Name: T4N250 MA160/960-2240 P MP 3P
Brand: ABB
SKU: T4N250 MA160/960-2240 P MP 3P

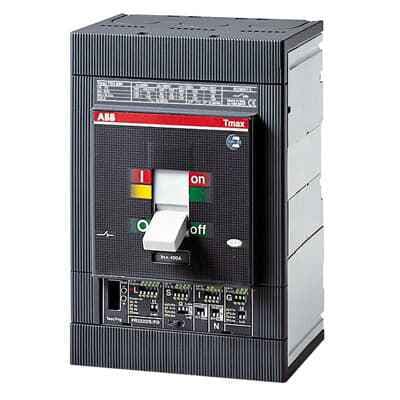

The ABB Tmax T4N250 MA160/960-2240 P MP 3P is a high-performance, 3-pole moulded-case circuit breaker designed for applications up to 250A. It features advanced magnetic-only trip units and is engineered for reliable and efficient power distribution.

Product ModelT4N250 MA160/960-2240 P MP 3P

Material Number1SDA097807R1

Product ID92868

Stock on Request

Last updated: 8/29/2026

Quantity

Key Features

1
1. Reliability and EfficiencyThe ABB Tmax T4N250 MA160/960-2240 P MP 3P is designed to provide reliable and efficient power distribution, ensuring minimal downtime and optimal system performance.
2
2. Advanced Magnetic Trip UnitsEquipped with magnetic-only trip units, this circuit breaker offers precise and reliable protection against short circuits and overloads, ensuring the safety and integrity of your electrical system.
3
3. Compact DesignDespite its robust performance, the Tmax T4N250 is designed to be compact, making it ideal for installations where space is limited. Its compact dimensions also facilitate easier installation and maintenance.
4
4. High Breaking CapacityWith a high breaking capacity, this circuit breaker can handle significant short-circuit currents, providing robust protection for your electrical system and ensuring that it can withstand unexpected surges.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Net Width

105 mm

Product Net Height

205 mm

Product Net Depth / Length

103.5 mm

Product Net Weight

3.6 kg

Product Type

Automatic Circuit Breaker

5. Compliance with International StandardsThe Tmax T4N250 complies with international standards such as IEC 60947-2, ensuring that it meets the highest safety and performance standards. This compliance provides peace of mind and ensures that the product is suitable for a wide range of applications.

6. Versatile Installation OptionsThe Tmax T4N250 offers versatile installation options, including DIN rail mounting, making it easy to integrate into various electrical systems. This flexibility ensures that the circuit breaker can be used in a variety of applications, from residential to industrial settings.

7. Long Service LifeDesigned with a long service life in mind, the Tmax T4N250 is built to withstand the demands of continuous operation. With a mechanical life of 25,000 operations and an electrical life of 8,000 operations at 415V AC, this circuit breaker is engineered to last.

8. EMC CompatibilityThe Tmax T4N250 is designed to operate in the presence of electromagnetic interferences (EMI) and other disturbances, ensuring that the circuit breaker functions reliably even in challenging environments. This is achieved through compliance with IEC 60947-2 Appendix B and European Directive No. 89/336 regarding EMC.

9. Tropicalization TestingThe Tmax T4N250 has undergone tropicalization testing according to IEC 60068-2-30, ensuring that it can operate effectively in harsh environmental conditions. This testing includes exposure to high temperatures and other environmental stresses, making the circuit breaker suitable for use in tropical or high-temperature environments.

10. Zone SelectivityThe Tmax T4N250 supports zone selectivity features, allowing for optimal coordination with other circuit breakers. This ensures that the electrical system operates safely and efficiently, reducing the risk of cascading failures and improving overall system reliability.

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Manufacturer ID

1SDA097807R1
