XT2S 160 Ekip Dip LSIG In=100A 4p F F

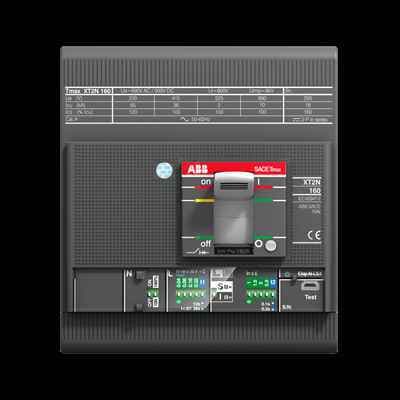

Name: XT2S 160 Ekip Dip LSIG In=100A 4p F F
Brand: ABB
SKU: XT2S 160 Ekip Dip LSIG In=100A 4p F F

The ABB XT2S 160 Ekip Dip LSIG In=100A 4p F F is a high-performance, fixed four-pole circuit breaker with solid-state release, designed for AC power distribution. It features a rated current of 100A and a rated voltage of 690V, ensuring reliable operation in demanding electrical environments.

Product ModelXT2S 160 Ekip Dip LSIG In=100A 4p F F

Material Number1SDA100053R1

Product ID87998

Stock on Request

Last updated: 9/5/2026

Quantity

Key Features

1
1. High ReliabilityThe ABB XT2S 160 Ekip Dip LSIG In=100A 4p F F is engineered to provide consistent and reliable performance, ensuring minimal downtime and maximum efficiency in your electrical systems.
2
2. Advanced Solid-State ReleaseEquipped with a solid-state release mechanism, this circuit breaker offers fast and precise tripping, ensuring quick response to electrical faults and protecting your equipment from damage.
3
3. Compact DesignWith its compact dimensions, the XT2S 160 Ekip Dip LSIG In=100A 4p F F fits seamlessly into modern switchgear and panel designs, optimizing space usage and enhancing overall system aesthetics.
4
4. Enhanced Safety FeaturesDesigned with safety in mind, this circuit breaker includes features like front terminal connections and a robust construction, ensuring safe and easy installation and maintenance.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Product Net Width

120 mm

Product Net Height

130 mm

Product Net Depth / Length

82.5 mm

Product Net Weight

1.6 kg

Circuit Breaker Type to be Associated

Power Distribution

Product Main Type

SACE Tmax XT

5. Compliance with International StandardsThe XT2S 160 Ekip Dip LSIG In=100A 4p F F meets and exceeds international standards for electrical safety and performance, including IEC and CE certifications, providing you with peace of mind and compliance assurance.

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

CAD Dimensional Drawing

1SDH002230A1002

Current Type

Electrical Durability

120 cycles per hour 8000 cycle

Mechanical Durability

240 cycles per hour 25000 cycle

Number of Poles

Power Loss

at Rated Operating Conditions per Pole 4.20 W

Rated Current (In)

100 A

Rated Frequency (f)

50/60 Hz

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V AC

Rated Operational Voltage

690 V AC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 36 kA (525 V AC) 25 kA (690 V AC) 12 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

(220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 36 kA (525 V AC) 25 kA (690 V AC) 12 kA

Rated Uninterrupted Current (Iu)

160 A

Rated Voltage (Ur)

690 V AC

Release

Ekip Dip LSIG

Release Type

Short-Circuit Performance Level

Standards

IEC

Sub-type

XT2

ETIM 8

EC000228 - Power circuit-breaker for trafo/generator/installation protection

Object Classification Code

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

Manufacturer ID

1SDA100053R1
