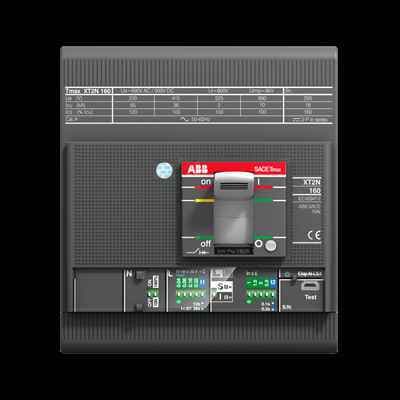

XT2S 160 Ekip I In=10A 4p F F

Name: XT2S 160 Ekip I In=10A 4p F F
Brand: ABB
SKU: XT2S 160 Ekip I In=10A 4p F F

The ABB XT2S 160 Ekip LSIG In=10A 4P FF is a fixed four-pole moulded case circuit breaker with a rated current of 10A, ideal for AC applications. It includes a solid-state release and front terminals, providing reliable and efficient operation.

Product ModelXT2S 160 Ekip I In=10A 4p F F

Material Number1SDA067839R1

Product ID83676

Stock on Request

Last updated: 9/5/2026

Quantity

Key Features

1
1. Reliable OperationThe XT2S 160 Ekip LSIG In=10A 4P FF ensures reliable operation with its solid-state release mechanism, which provides consistent performance under various electrical conditions.
2
2. Efficient DesignDesigned with front terminals, this circuit breaker offers easy installation and maintenance, reducing downtime and increasing overall efficiency.
3
3. High PerformanceRated for 10A, this circuit breaker is suitable for a wide range of applications, including industrial and commercial settings, where high performance is crucial.
4
4. Compliance with StandardsThe XT2S 160 Ekip LSIG In=10A 4P FF meets IEC standards, ensuring compliance with international safety and performance regulations, providing peace of mind for users.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Environmental Information

9AKK108467A6707

Product Net Width

120 mm

Product Net Height

130 mm

Product Net Depth / Length

82.5 mm

Product Net Weight

1.6 kg

Circuit Breaker Type to be Associated

Power Distribution

5. Durable ConstructionConstructed with high-quality materials, this circuit breaker is built to last, with a mechanical durability of 25000 cycles, making it a long-lasting solution for electrical systems.

Product Main Type

SACE Tmax XT

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Version

CAD Dimensional Drawing

1SDH002230A1002

Connecting Capacity Main Circuit

Busbar 32.5..100 mmÂ²

Current Type

Electrical Durability

120 cycles per hour 8000 cycle

Mechanical Durability

240 cycles per hour 25000 cycle

Number of Poles

Opening Time

CB with SOR 15 ms CB with UVR 15 ms

Order Multiple

1 piece

Power Loss

at Rated Operating Conditions per Pole 0.1 W

Rated Current (In)

10 A

Rated Frequency (f)

50 / 60 Hz

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 36 kA (525 V AC) 25 kA (690 V AC) 12 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

(220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 36 kA (525 V AC) 25 kA (690 V AC) 12 kA

Rated Uninterrupted Current (Iu)

160 A

Rated Voltage (Ur)

690 V

Recommended Screw Driver

Main Circuit M6

Release

Ekip I

Release Type

Short-Circuit Performance Level

Standards

IEC60947-2

Sub-type

XT2

Terminal Connection Type

Front

Terminal Type

Bolt

Tightening Torque

6 NÂ·m

ETIM 8

EC000228 - Power circuit-breaker for trafo/generator/installation protection

ETIM 9

EC000228 - Power circuit-breaker for trafo/generator/installation protection

Object Classification Code

UNSPSC

39120000

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

eClass

V11.1 : 27370409

Manufacturer ID

1SDA067839R1
