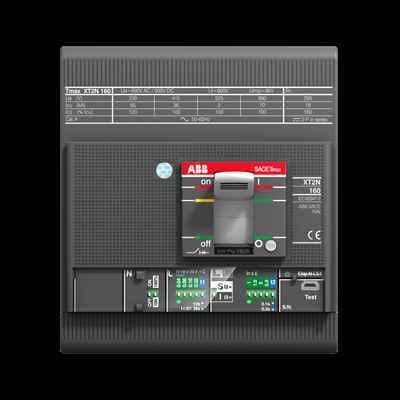

ABB XT2S 160 Ekip Dip LS/I In=10A 4p F F: A reliable, four-pole AC circuit breaker with solid-state release and front terminals for efficient power distribution.
Product ModelXT2S 160 Ekip Dip LS/I In=10A 4p F F
Material Number1SDA067833R1
Product ID83615
Stock on Request
Last updated: 9/5/2026
Key Features
1
1. Reliable OperationThe XT2S 160 Ekip Dip LS/I In=10A 4p F F is designed with a solid-state release mechanism, ensuring consistent and reliable operation under various electrical conditions.
2
2. Easy InstallationEquipped with front terminals, this circuit breaker simplifies the installation process, reducing setup time and increasing efficiency.
3
3. High DurabilityBuilt to withstand 8000 cycles, this circuit breaker is engineered for long-term performance in demanding electrical environments.
4
4. Compliance with StandardsMeets IEC standards, ensuring compliance with international electrical safety regulations, providing peace of mind for users.
5
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Environmental Information
9AKK108467A6707
Product Net Width
120 mm
Product Net Height
130 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.6 kg
Circuit Breaker Type to be Associated
Power Distribution
5. Compact DesignWith dimensions of 120 mm x 130 mm x 82.5 mm, the XT2S 160 Ekip Dip LS/I In=10A 4p F F is designed to fit seamlessly into modern electrical systems, maximizing space efficiency.
Product Main Type
SACE Tmax XT
Product Name
Moulded Case Circuit Breaker
Product Type
Automatic Circuit Breaker
Version
F
CAD Dimensional Drawing
1SDH002230A1002
Connecting Capacity Main Circuit
Busbar 32.5..100 mm²
Current Type
AC
Electrical Durability
120 cycles per hour 8000 cycle
Mechanical Durability
240 cycles per hour 25000 cycle
Number of Poles
4P
Opening Time
CB with SOR 15 ms CB with UVR 15 ms
Order Multiple
1 piece
Power Loss
at Rated Operating Conditions per Pole 0.1 W
Rated Current (In)
10 A
Rated Frequency (f)
50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Voltage
690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)
(220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 36 kA (525 V AC) 25 kA (690 V AC) 12 kA
(220 V AC) 85 kA (230 V AC) 85 kA (240 V AC) 85 kA (380 V AC) 50 kA (415 V AC) 50 kA (440 V AC) 50 kA (500 V AC) 36 kA (525 V AC) 25 kA (690 V AC) 12 kA
Rated Uninterrupted Current (Iu)
160 A
Rated Voltage (Ur)
690 V
Recommended Screw Driver
Main Circuit M6
Release
Ekip Dip LS/I
Release Type
EL
Short-Circuit Performance Level
S
Standards
IEC60947-2
Sub-type
XT2
Terminal Connection Type
Front
Terminal Type
Bolt
Tightening Torque
6 N·m
ETIM 8
EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code
Q
UNSPSC
39120000
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
eClass
V11.1 : 27370409
Manufacturer ID
1SDA067833R1
