2606-1109/010-000

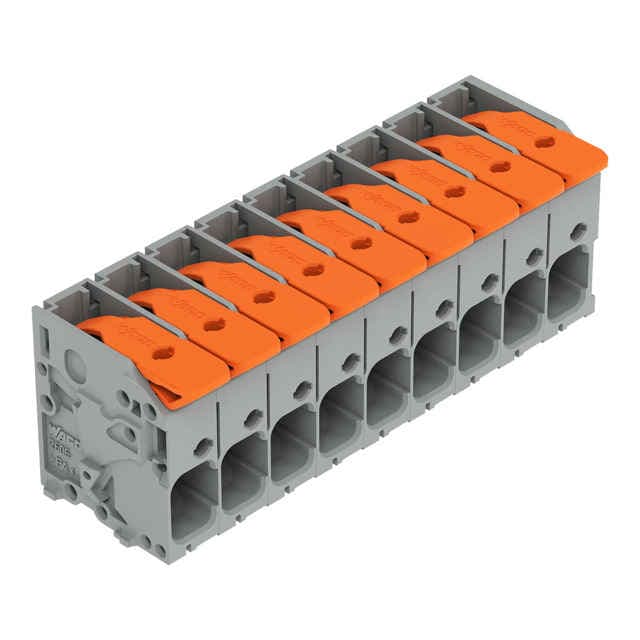

9-pole PCB terminal block with lever actuation, compatible with 0.2 … 10 mm² / 24 … 8 AWG conductors.
Product Model2606-1109/010-000
Product ID50100
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeatureEasy and secure connection with lever actuation
- 2FeatureCompatible with both solid and fine-stranded conductors (0.2 … 10 mm² / 24 … 8 AWG)
- 3Feature9-pole configuration for multiple connections
- 4Feature7.5 mm pin spacing for standard PCB layouts
- 5FeatureRoHS compliant and approved by cURus and CSA
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
9
Total number of potentials
9
Number of connection types
1
Number of levels
1
Pin spacing
7.5 mm / 0.295 inches
