2616-3101

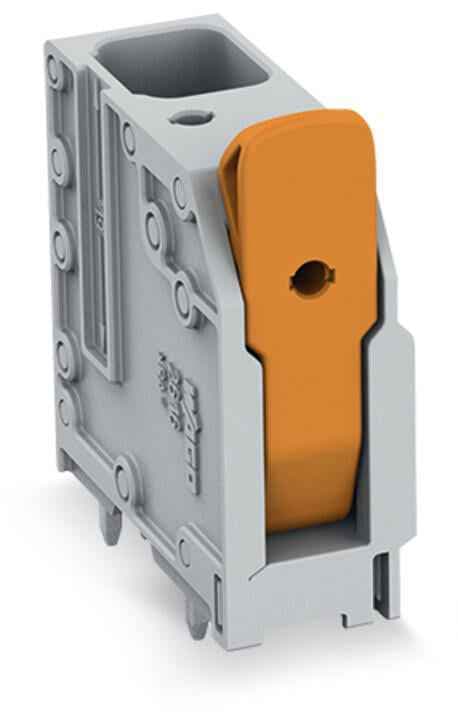

PCB terminal block with push-in CAGE CLAMP, operating lever, and double pinning. For AWG 18-4 wires, 10 mm pin spacing, and top entry.
Product Model2616-3101
Product ID48420
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeaturePush-in CAGE CLAMP technology for easy and secure wire connection
- 2FeatureOperating lever for convenient opening and closing of the clamp
- 3FeatureDouble pinning for increased reliability and connection stability
- 4FeatureSuitable for a wide range of wire sizes (AWG 18 - 4)
- 5FeatureTop entry design for easy access and installation
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Note
The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g., torsional or bending stress), both when connecting the conductor and during subsequent use, for example by providing additional support, shortly holding the connected conductor and appropriate actuation instructions.
Variants:
Other pole numbers
Clamping units
1
Total number of potentials
1
Number of connection types
1
