256-504/333-000

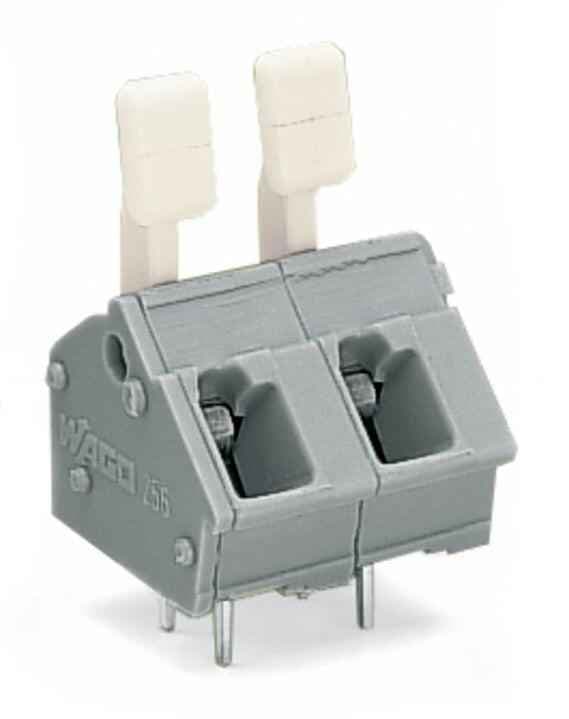

The WAGO 256-504/333-000 is a 4-pole PCB terminal block featuring finger-operated levers, CAGE CLAMP technology, and a commoning option. It supports conductors up to 2.5 mm² and has a rated current of 24 A.
Product Model256-504/333-000
Product ID48198
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeatureFinger-operated levers for easy and secure connections
- 2FeatureCAGE CLAMP technology for reliable and vibration-proof connections
- 3FeatureCommoning option for flexible circuit design
- 4FeatureSupports fine-stranded and solid conductors up to 2.5 mm²
- 5FeatureRated current of 24 A and rated voltage up to 630 V (II / 2)
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
4
Total number of potentials
4
Number of connection types
1
Number of levels
1
Pin spacing
7.5/7.62 mm / 0.295/0.3 inches
