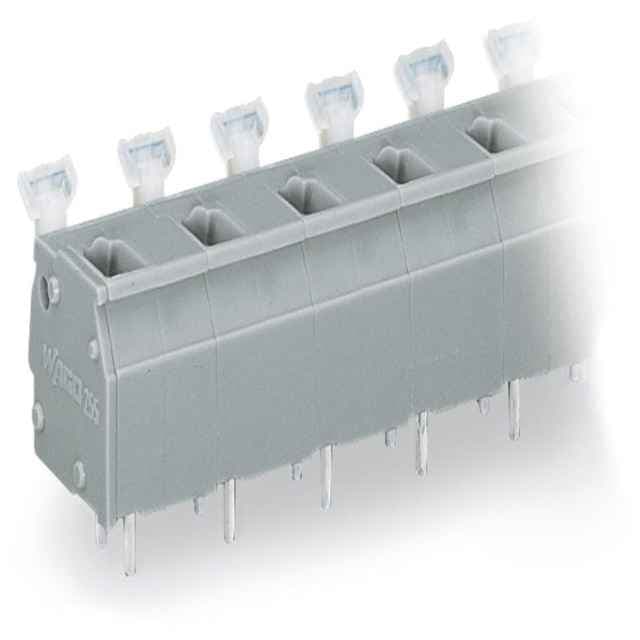

255-608
The 255-608 is an 8-position wire to board terminal block with push-button and 2.5 mm² pin spacing. It features CAGE CLAMP technology and is suitable for various PCB applications.
Product Model255-608
Product ID44085
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeatureCAGE CLAMP Technology
- 2FeaturePush-Button Design
- 3Feature2.5 mm² Pin Spacing
- 4Feature8-Position Configuration
- 5FeatureCommoning Option
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
8
Total number of potentials
8
Number of connection types
1
Number of levels
1
Pin spacing
10/10.16 mm / 0.394/0.4 inches
