254-557

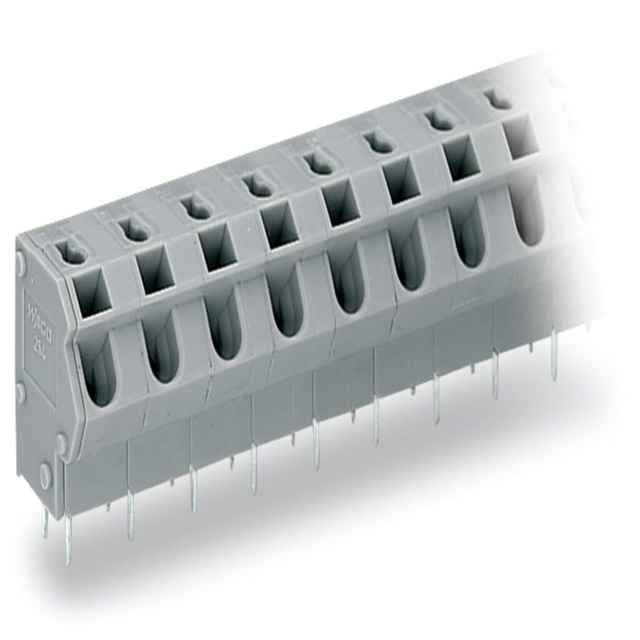

The WAGO 254-557 is a 7-pole PCB terminal block with a conductor cross-sectional area of 2.5 mm². It features PUSH WIRE® termination for easy connection of solid and ferruled, fine-stranded conductors.
Product Model254-557
Product ID43943
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeatureEasy-to-use PUSH WIRE® termination
- 2FeatureSuitable for solid and ferruled, fine-stranded conductors
- 3Feature7 poles for multiple connections
- 4Feature2.5 mm² conductor cross-sectional area for reliable connections
- 5FeatureDurable construction for long-lasting performance
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
7
Total number of potentials
7
Number of connection types
1
Number of levels
1
Pin spacing
7.5/7.62 mm / 0.295/0.3 inches
