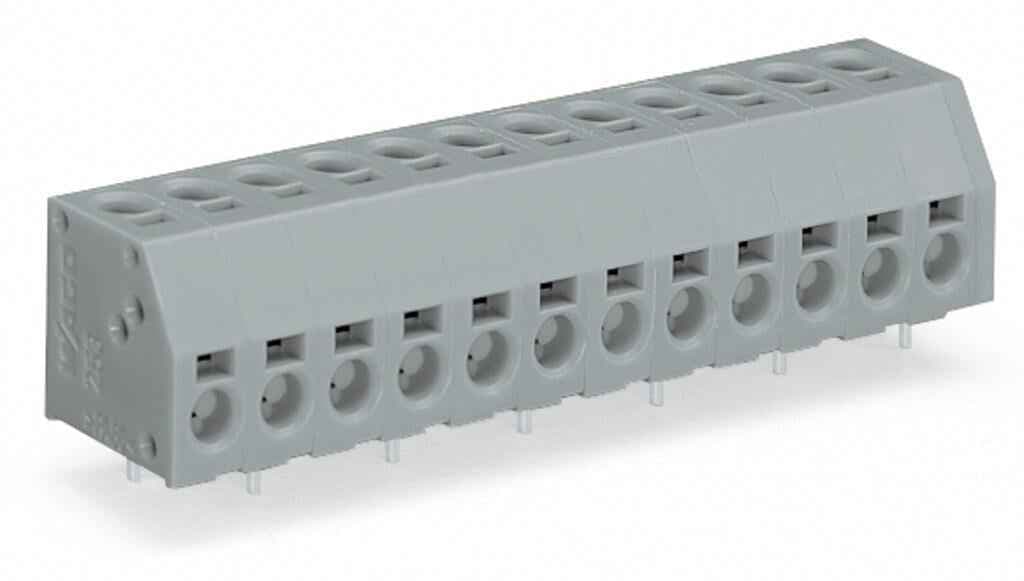

253-109
The WAGO 253-109 is a 2-conductor PCB terminal block with 5 mm pin spacing, suitable for solid and fine-stranded conductors. It features CAGE CLAMP® connection technology and is rated for up to 24 A and 300 V.
Product Model253-109
Product ID43805
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeatureReliable CAGE CLAMP® connection technology for secure conductor clamping.
- 2FeatureSuitable for both solid and fine-stranded conductors (0.08–2.5 mm², 28–12 AWG).
- 3FeatureRated for high current and voltage (24 A, 300 V).
- 4FeatureDurable construction with polyamide 6.6 (PA 6.6) insulation and chrome nickel spring steel clamping springs.
- 5FeatureCompliant with various international standards (UL/CSA, IEC/EN).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
18
Total number of potentials
9
Number of connection types
2
Number of levels
1
Pin spacing
5 mm / 0.197 inches
