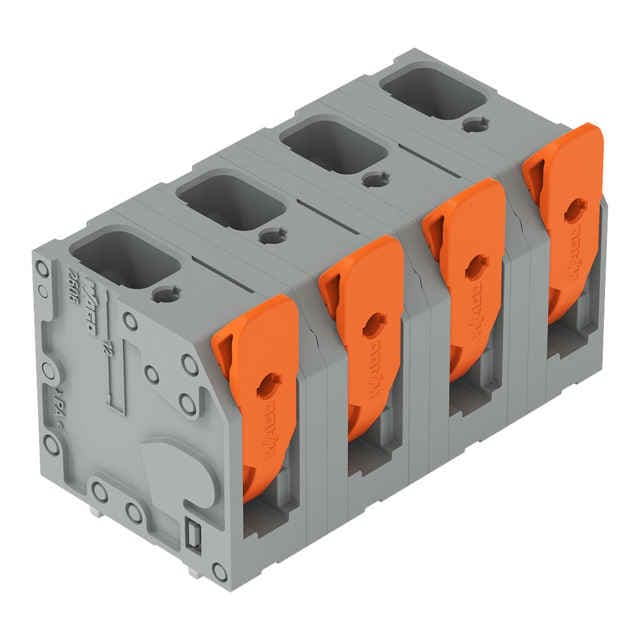

The WAGO 2606-3354 lever-type PCB terminal block offers reliable connections with a 4-pole configuration and 12.5 mm pin spacing.
Product Model2606-3354
Product ID43747
Stock on Request
Last updated: 8/29/2026
Key Features
1
{Reliable ConnectionsThe WAGO 2606-3354 ensures secure and reliable connections in industrial applications.}, {Easy Installation: The push-in CAGE CLAMP technology makes installation quick and easy.}, {High Current Rating: Designed to handle high currents, making it suitable for demanding applications.}, {Durable Construction: Built with durable materials to withstand harsh environments.}, {Versatile Use: Suitable for a wide range of industrial applications, including automation and control systems.}
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
4
Total number of potentials
4
Number of connection types
1
Number of levels
1
Pin spacing
12.5 mm / 0.492 inches
Width
46.5 mm / 1.831 inches
Height
31 mm / 1.22 inches
Height from the surface
27 mm / 1.063 inches
Depth
24 mm / 0.945 inches
Solder pin length
4mm
Solder pin dimensions
1.5 x 1.2 mm
Drilled hole diameter with tolerance
2(+0.1)mm
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)
Number of solder pins per potential
2
Note (material data)
Information on material specifications can be found here
