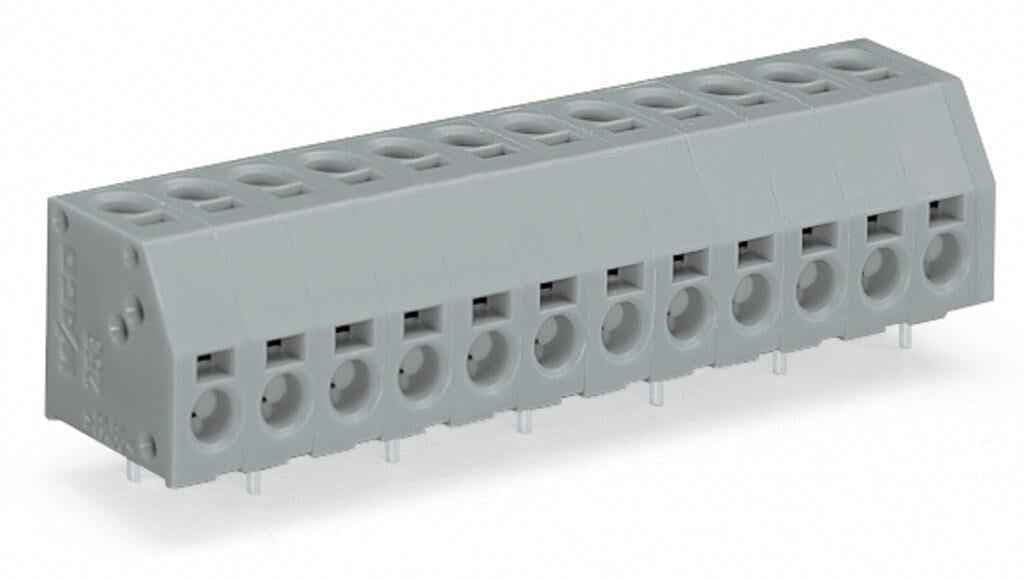

{Efficient connectionThe PUSH WIRE® technology ensures quick and reliable connections.}, {Versatile use: Suitable for various PCB applications due to its 12-pole design.}, {High-quality material: Made from durable gray material (4044918689625).}, {Easy installation: Simple to install with its 5 mm pin spacing.}, {Compliant with ROHS standards: Ensures environmental compliance.}
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
24
Total number of potentials
12
Number of connection types
2
Number of levels
1
Pin spacing
5 mm / 0.197 inches
Width
62 mm / 2.441 inches
Height
16.6 mm / 0.654 inches
Height from the surface
13 mm / 0.512 inches
Depth
12.8 mm / 0.504 inches
Solder pin length
3.6mm
Solder pin dimensions
0.5 x 0.8 mm
Drilled hole diameter with tolerance
1.1(+0.1)mm
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (staggered)
Number of solder pins per potential
1
Note (material data)
Information on material specifications can be found here
