2601-1102

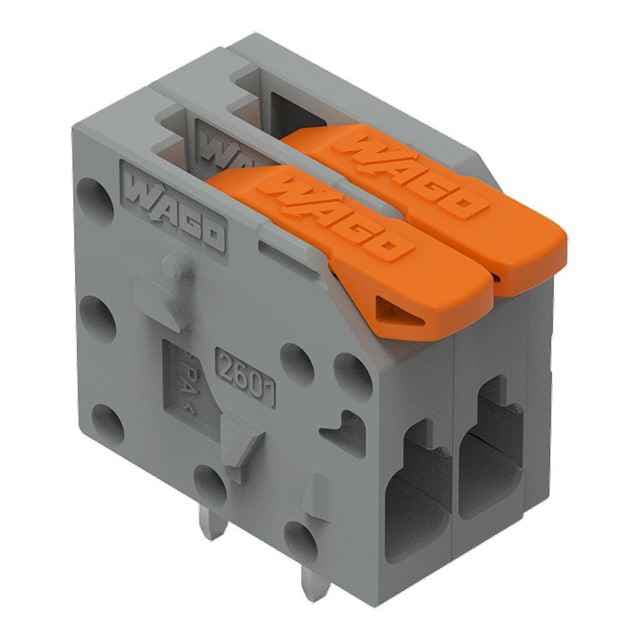

PCB terminal block with Push-in CAGE CLAMP connection, operating lever, 26-14 AWG, Pin spacing: 3.5 mm, 2-pole, side entry, conductor cross-section: 1.5 mm², color: gray.
Product Model2601-1102
Product ID40115
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeaturePush-in termination of solid and ferruled conductors
- 2FeatureIntuitive and tool-free operation
- 3FeatureSeveral clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- 4FeatureTesting can be performed both parallel and perpendicular to conductor entry
- 5FeatureCompliant with RoHS guidelines and SVHC free
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
2
Total number of potentials
2
Number of connection types
1
Number of levels
1
Pin spacing
3.5 mm / 0.138 inches
