2601-3111

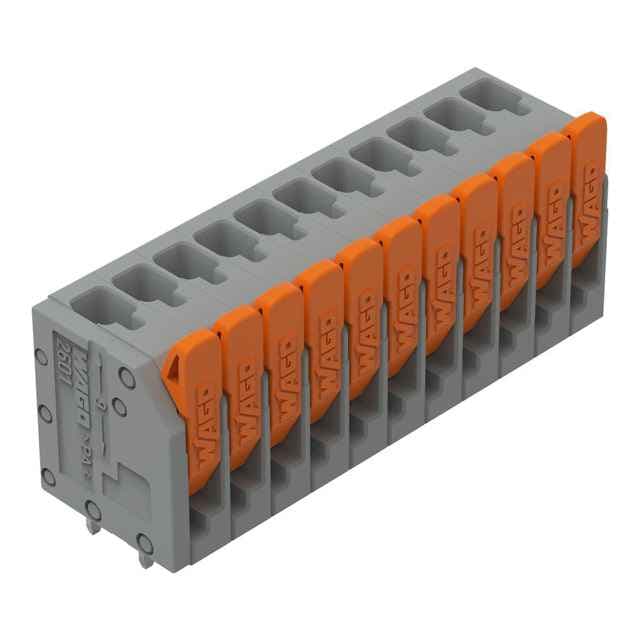

Wire-to-board terminal block with 11 positions, 3.5 mm pitch, and 1.5 mm² conductor area.
Product Model2601-3111
Product ID40108
Stock on Request
Last updated: 8/29/2026Key Features
- 1Feature11 positions for multiple wire connections
- 2Feature3.5 mm pitch for easy spacing
- 3Feature1.5 mm² conductor area for high current capacity
- 4FeaturePush In Lock connection method for secure wiring
- 5FeatureOperating temperature range of -60°C to +105°C
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
11
Total number of potentials
11
Number of connection types
1
Number of levels
1
Pin spacing
3.5 mm / 0.138 inches
