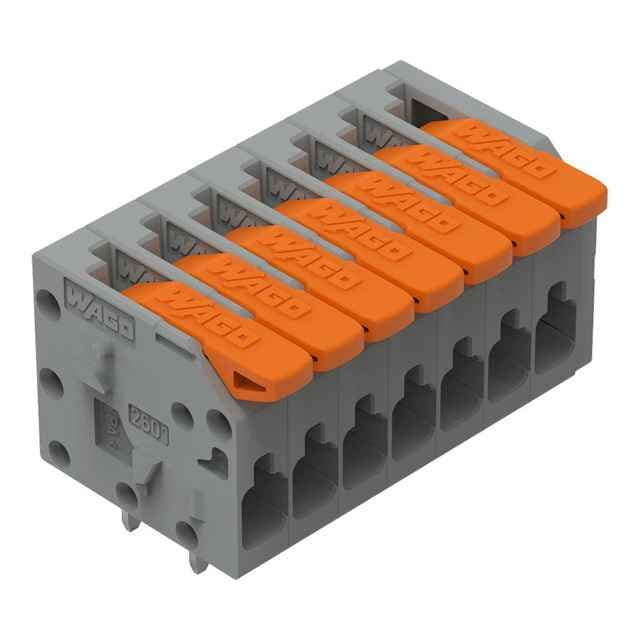

2601-1107
PCB terminal block with Push-in CAGE CLAMP® connection and lever, suitable for solid and ferruled conductors, 7-pole, 3.5 mm pin spacing.
Product Model2601-1107
Product ID40043
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeatureTool-free and intuitive operation with lever actuation.
- 2FeatureSupports both solid and ferruled conductors.
- 3FeatureMultiple clamping units can be held open simultaneously for easy multi-core cable connection.
- 4FeatureTesting can be performed both parallel and perpendicular to conductor entry.
- 5FeatureCompliant with various international standards including IEC, UL, and CSA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
7
Total number of potentials
7
Number of connection types
1
Number of levels
1
Pin spacing
3.5 mm / 0.138 inches
