257-524

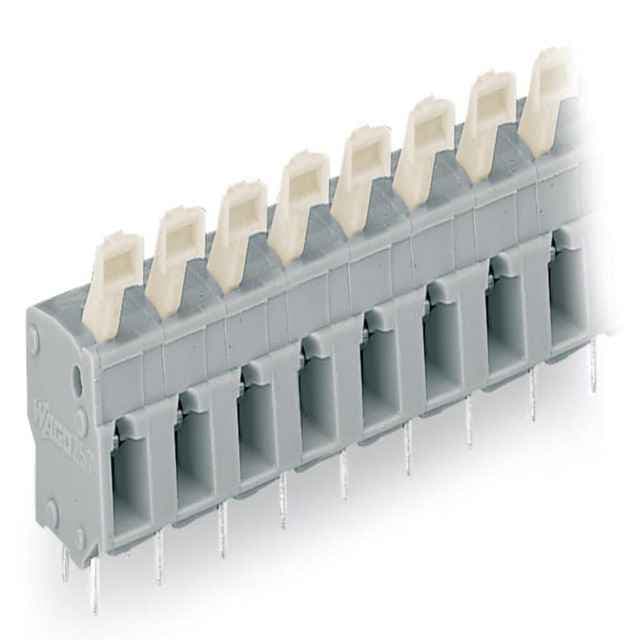

The WAGO 257-524 is a 24-pole PCB terminal block with push-button actuated CAGE CLAMP® technology, suitable for wires from 12-28 AWG.
Product Model257-524
Product ID39921
Stock on Request
Last updated: 8/29/2026Key Features
- 1FeaturePush-button actuated for easy wire insertion and release.
- 2FeatureCAGE CLAMP® technology ensures reliable connections.
- 3FeatureThrough-hole mounting for secure PCB installation.
- 4FeatureCompatible with wire gauges from 12-28 AWG.
- 5FeatureDurable gray housing for long-term use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Variants:
Other pole numbers
Clamping units
24
Total number of potentials
24
Number of connection types
1
Number of levels
1
Pin spacing
7.5/7.62 mm / 0.295/0.3 inches
