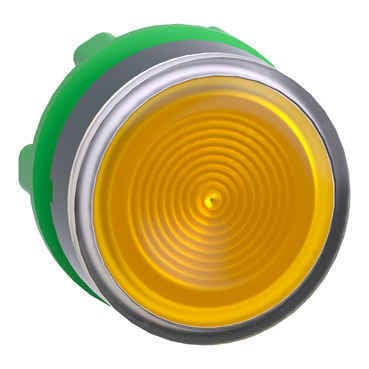

ZB5AW383S: An impact-resistant, dust-resistant, and water-resistant illuminated push button for the Harmony XB5 series, perfect for industrial applications.
Product ModelZB5AW383S
Product ID26637
Stock on Request
Last updated: 8/29/2026
Key Features
1
Impact ResistanceThe ZB5AW383S is designed with an IP66 rating, ensuring it withstands impacts and harsh environments.
2
Dust and Water ResistantThis push button is protected against dust and water ingress, making it suitable for various industrial settings.
3
Vibration ResistantThe product's vibration-resistant design ensures stable performance even in dynamic conditions.
4
Universal LEDThe 22mm universal LED flush type provides clear visibility in different lighting conditions.
5
Spring Return
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
The spring return feature ensures the button returns to its original position after being pressed, enhancing user experience and reliability.
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
spring return
Operator profile
Yellow flush, unmarked
Operator additional information
With grooved lens
Environmental characteristic
High ambient lighting environment
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.2 in (30 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
10000000 cycles
Main group
Illum push-button
Group of product
Flush push integral LED
Station name
XALD 1...5 cut-outsXALK 2...5 cut-outs
Cap/operator or lens colour
Yellow
Marking
Unmarked
Electrical composition code
M1 6 single front mounting integral LEDM2 6 single and double front mounting integral LEDM6 2 single front mounting integral LED and transformerM10 2 single front mounting integral LEDMF1 2 single front mounting integral LEDMR1 2 single rear mounting integral LED
