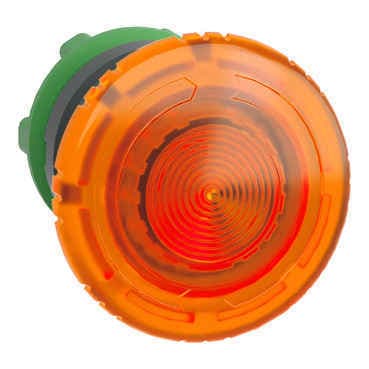

Orange illuminated mushroom pushbutton head with integral LED for quick actions in processes or machines.
Product ModelZB5AW753
Product ID26415
Stock on Request
Last updated: 8/29/2026
Key Features
1
FeatureIdeal for quick actions in processes or machines.
2
FeatureEnhances control systems with reliable components.
3
FeatureFeatures an orange illuminated mushroom shape.
4
FeatureEquipped with an integral LED for clear visibility.
5
FeatureDesigned for high-performance applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Range of Product
Harmony XB5
Product or Component Type
Head for illuminated push-button
Device short name
ZB5
Product Compatibility
Universal LED
Bezel material
Dark grey plastic
Mounting diameter
0.9 in (22 mm)
Sale per indivisible quantity
1
Head type
Standard
Shape of signaling unit head
Round
Type of operator
latching
Reset
Turn to release
Operator profile
Orange mushroom à 40 mm, unmarked
CAD overall width
1.6 in (40 mm)
CAD overall height
1.6 in (40 mm)
CAD overall depth
2.0 in (50 mm)
Net Weight
0.049 lb(US) (0.022 kg)
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
Mechanical durability
300000 cycles
Main group
Mushroom head
Group of product
Mush. turn to release illum
Station name
XALD 1 cut-outXALK 1 cut-out
Cap/operator or lens colour
Orange
Marking
Unmarked
Electrical composition code
M6 2 single front mounting integral LED and transformerM10 2 single front mounting integral LEDMF1 2 single front mounting integral LEDMR1 2 single rear mounting integral LEDM3 4 single front mounting integral LEDM4 4 single and double front mounting integral LED
