ZB5AV053S

Name: ZB5AV053S
Brand: Schneider
SKU: ZB5AV053S

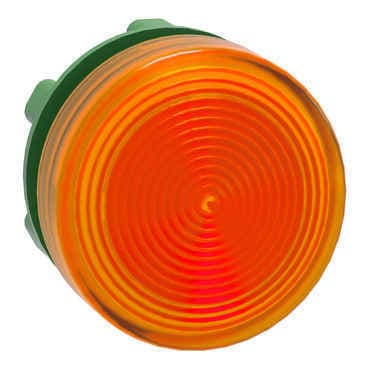

Harmony XB5 Pilot Light Head: Durable, impact-resistant, and water-resistant with an orange grooved lens.

Product ModelZB5AV053S

Product ID26318

Stock on Request

Last updated: 9/5/2026

Quantity

Key Features

1
Feature-

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Range of Product

Harmony XB5

Product or Component Type

Head for pilot light

Product Compatibility

Universal LED

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

0.9 in (22 mm)

Sale per indivisible quantity

Shape of signaling unit head

Round

cap/operator or lens colour

Yellow

Operator additional information

With grooved lens

CAD overall width

1.1 in (29 mm)

CAD overall height

1.1 in (29 mm)

CAD overall depth

1.2 in (31 mm)

Net Weight

0.037 lb(US) (0.017 kg)

Station name

XALD 1...5 cut-outsXALK 2...5 cut-outs

Electrical composition code

P1 front mounting integral LEDP2 front mounting integral LED and transformerPF1 front mounting integral LED

Device presentation

Basic element

Protective treatment

Ambient Air Temperature for Storage

-40...158 °F (-40...70 °C)

Ambient Air Temperature for Operation

-40...158 °F (-40...70 °C)

Overvoltage category

Class II IEC 60536

IP degree of protection

IP66 IEC 60529IP67 IEC 60529IP69 IEC 60529IP69K ISO 20653

NEMA degree of protection

NEMA 13NEMA 4X

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

IK degree of protection

IK05 conforming to IEC 50102

Standards

CSA C22.2 No 14IEC 60947-5-4IEC 60947-5-1IEC 60947-1IEC 60947-5-5JIS C8201-5-1UL 508JIS C8201-1

Environmental characteristic

High ambient lighting environment

Vibration resistance

5 gn 2...500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
