FeatureIlluminated interface for easy operation in low-light conditions
3
FeatureUniversal LED compatibility for versatile use
4
FeatureReliable and durable construction for long-lasting performance
5
FeatureEasy installation and maintenance
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Specifications may be subject to change without notice
Parameter
Value
Parameter
Value
Range of Product
Harmony XB5
Product or Component Type

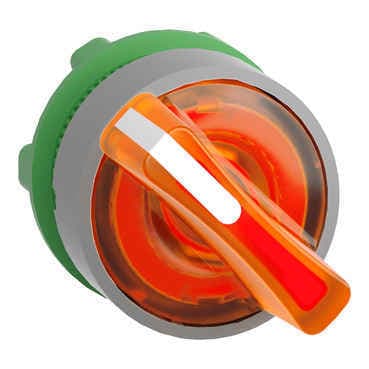

Head for illuminated selector switch
Product Compatibility
Universal LED
Device short name
ZB5
Bezel material
Plastic colour plated grey
Mounting diameter
0.9 in (22 mm)
Head type
Standard
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Type of operator
Right to left spring return
Operator profile
Orange standard handle
Operator position information
2 positions 90°
CAD overall width
1.1 in (29 mm)
CAD overall height
1.1 in (29 mm)
CAD overall depth
1.7 in (43 mm)
Net Weight
0.037 lb(US) (0.017 kg)
Mechanical durability
500000 cycles
Station name
XALD 1...5 cut-outsXALK 2...5 cut-outs
Electrical composition code
M3 4 single front mounting integral LEDM6 2 single front mounting integral LED and transformerM10 2 single front mounting integral LEDMF1 2 single front mounting integral LEDMR1 2 single rear mounting integral LEDM4 4 single and double front mounting integral LED
