ZB4BV083S

Name: ZB4BV083S
Brand: Schneider
SKU: ZB4BV083S

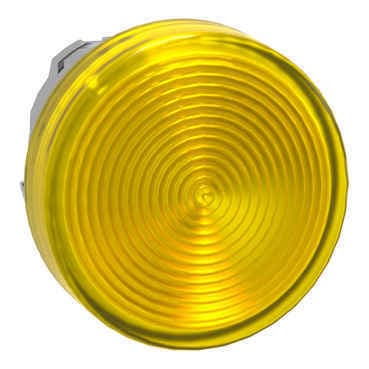

The ZB4BV083S is a universal LED head for pilot lights, featuring a yellow metal design with a grooved lens.

Product ModelZB4BV083S

Product ID24476

Stock on Request

Last updated: 9/5/2026

Quantity

Key Features

1
FeatureHigh impact and vibration resistance
2
FeatureIdeal for harsh environments
3
FeatureUniversal LED compatibility
4
FeatureYellow metal design for visibility
5
FeatureGrooved lens for complex machine status reading

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Specifications may be subject to change without notice

Parameter

Value

Parameter

Value

Range of Product

Harmony XB4

Product or Component Type

Head for pilot light

Product Compatibility

Universal LED

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

0.9 in (22 mm)

Sale per indivisible quantity

Shape of signaling unit head

Round

cap/operator or lens colour

Yellow

Operator additional information

With grooved lens

Environmental characteristic

High ambient lighting environment

CAD overall width

1.1 in (29 mm)

CAD overall height

1.1 in (29 mm)

CAD overall depth

1.2 in (30 mm)

Net Weight

0.057 lb(US) (0.026 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Electrical composition code

P1 front mounting integral LEDP2 front mounting integral LED and transformer

Device presentation

Basic element

Protective treatment

Ambient Air Temperature for Storage

-40...158 °F (-40...70 °C)

Ambient Air Temperature for Operation

-40...158 °F (-40...70 °C)

Overvoltage category

Class I IEC 60536

IP degree of protection

IP66 IEC 60529IP67IP69IP69K

NEMA degree of protection

NEMA 13NEMA 4X

IK degree of protection

IK06 conforming to IEC 50102

Standards

EN/IEC 60947-5-5JIS C8201-5-1CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60947-1EN/IEC 60947-5-4UL 508JIS C8201-1

Vibration resistance

5 gn 2...500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
